Suitable for koi ponds up to 200m3 and for swimming ponds up to 300m3!

* NEW! Standard with internal flushing pump to flush flushing gutter.

* NEW! Standard with 2 UV lamp connections.

* The Sieve is a 70 micron sieve cloth that has an extremely high water contact surface of over 80%!

* The drain consists of a sloping gutter with a 110mm connection. There is also a flushing system.

* integrated to flush the waste gutter if necessary.

* The Bio Chamber has a capacity of 420 liters!

* The stainless steel Internal high pressure pump to rinse the filter cloth is a 5 bar 5m3 per hour high pressure pump.

Specifications:

The specifications regarding the inlets and outlets are negotiable at an additional cost. Larger sizes are also possible and we can easily deliver customization. Make an appointment with your dealer to discuss your wishes and ideas.

Maximum flow: 100m3 per hour with maximum water level in gravity setup.

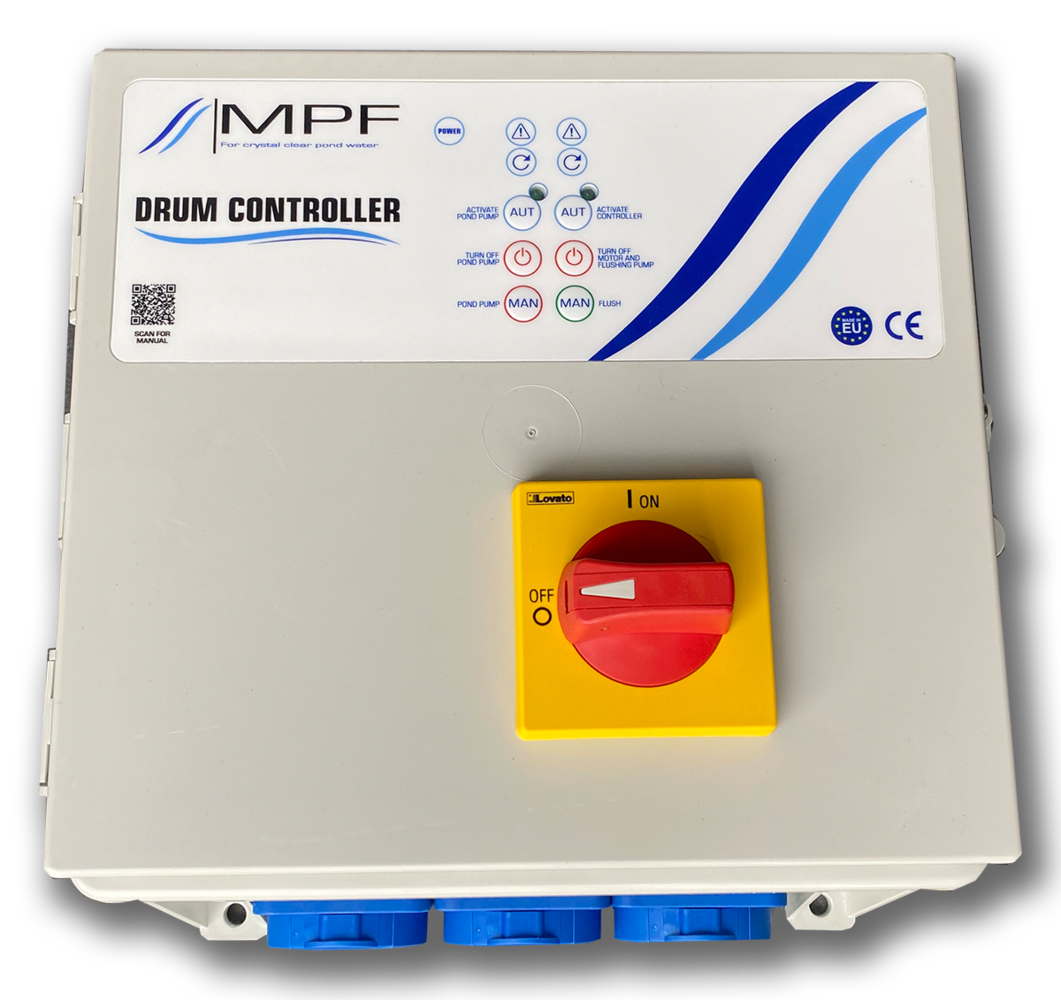

Controls: Incl. with dry run protection

incl. air dish
incl. Bypass for calamities.
incl. Internal Flush Pump
incl. industrial electronics

Filter comes standard with lid

The filter comes standard with a 2 year warranty (excl. filter cloth)

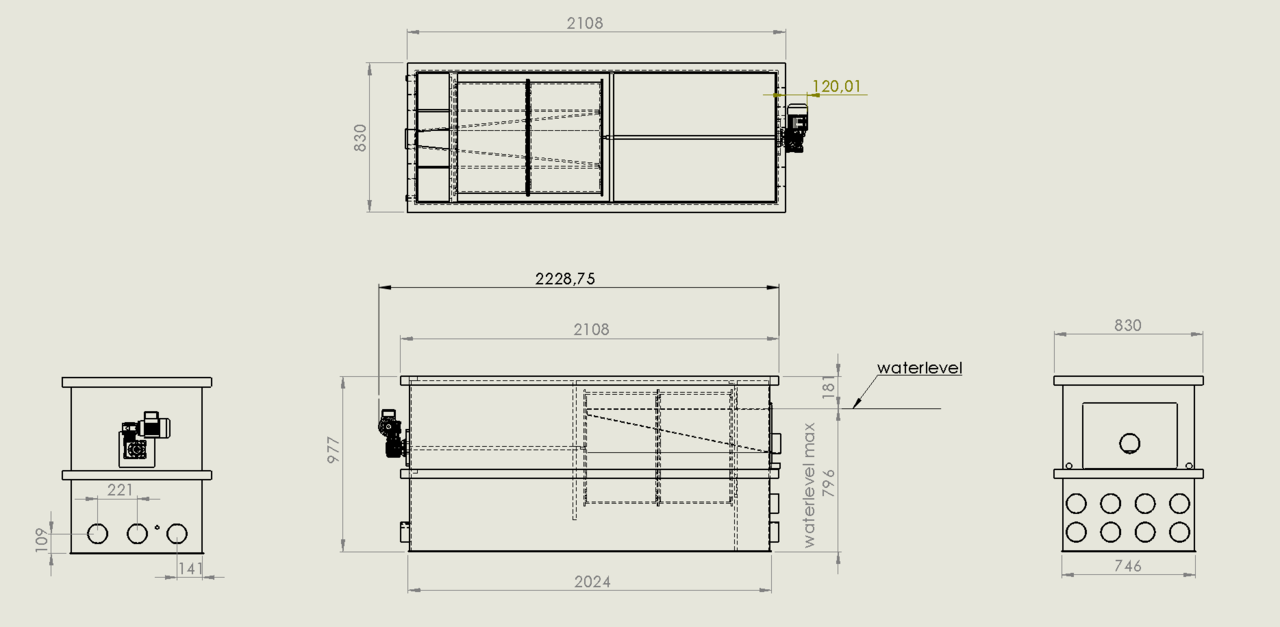

Download Drawing
