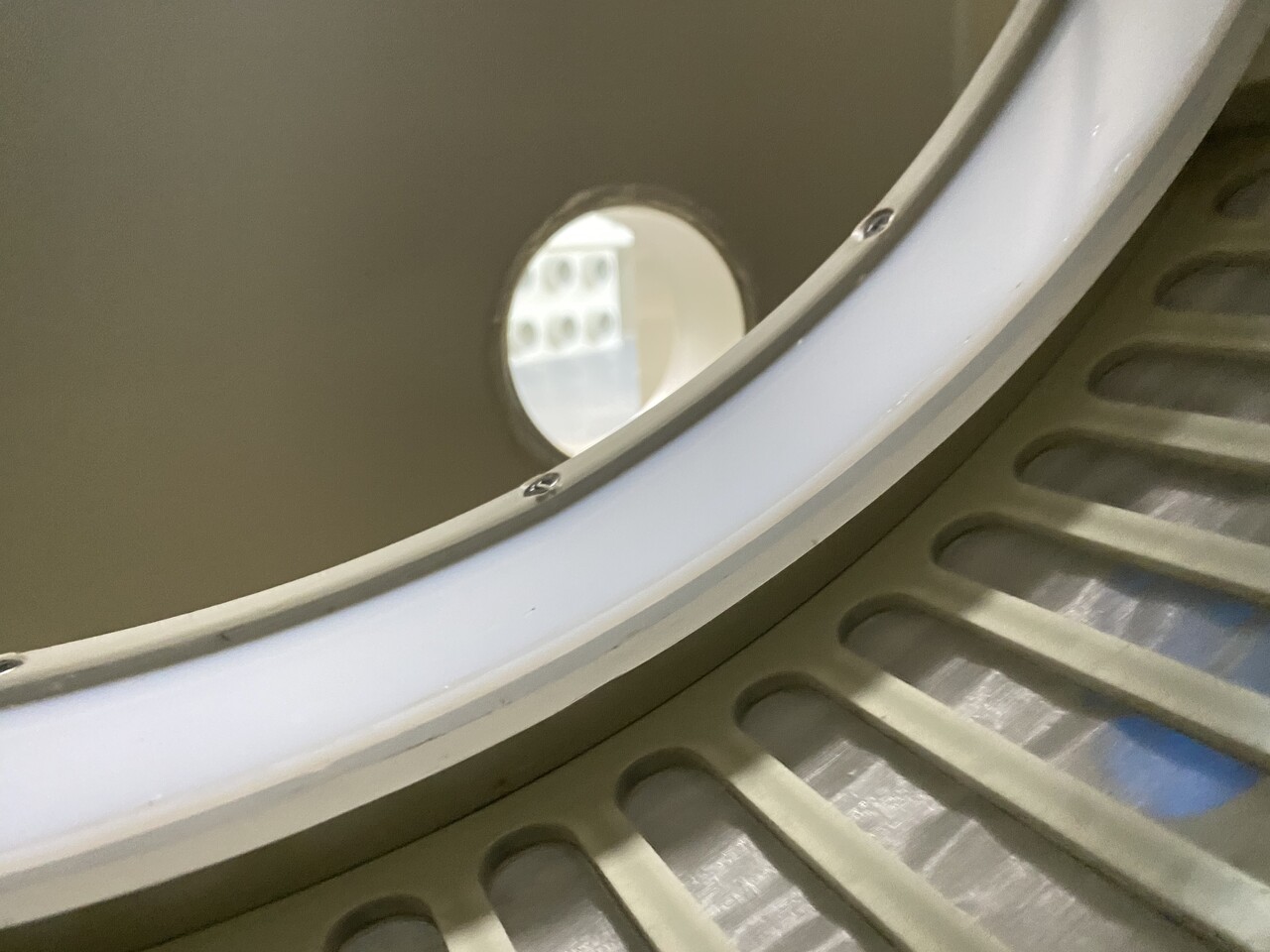

    MPF BIODRUM 100 PRO

    Product description

    The Biodrum 100 PRO combi drum filter is suitable for koi ponds up to 100m3 and for swimming ponds up to 250m3!

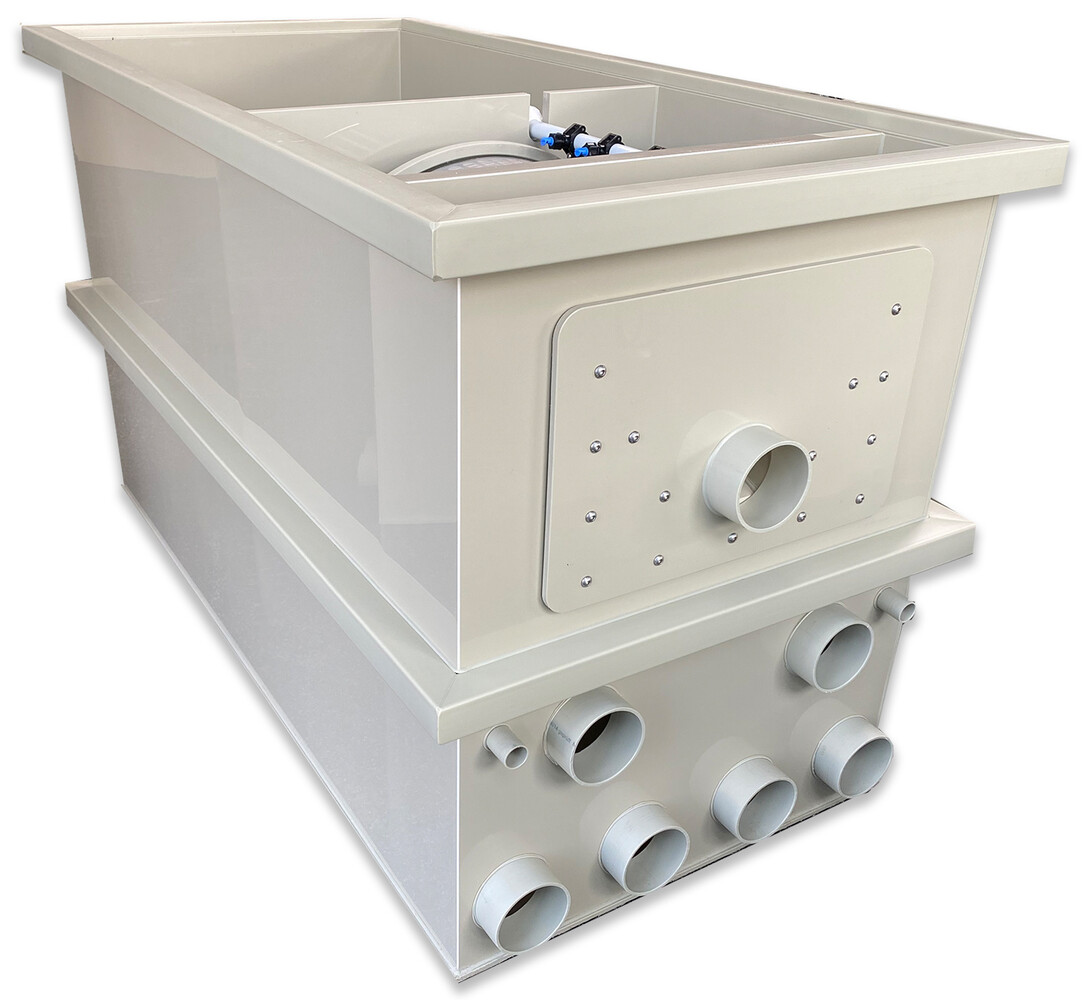

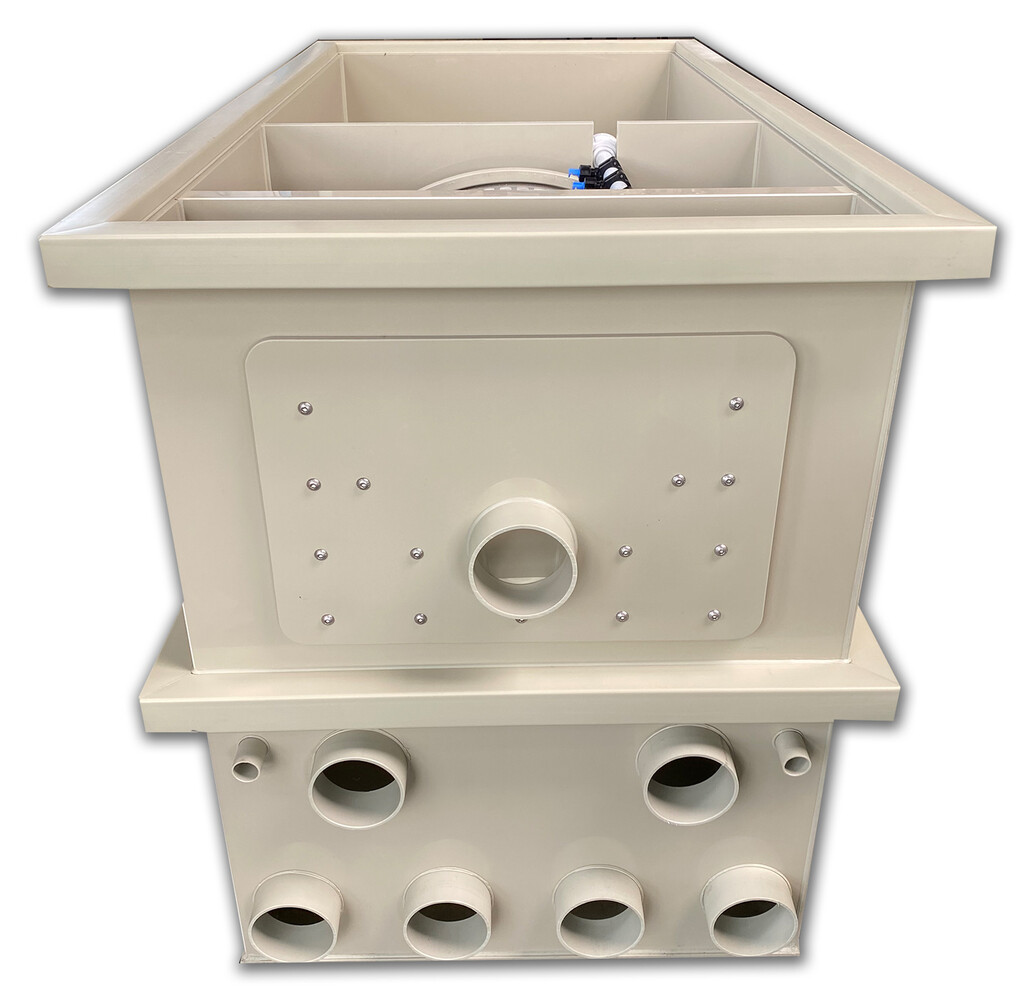

    The external dimensions are the same as the Biodrum 100 (standard). Only the pro has 6 inputs and 4 outputs 110mm, has a wide waste chute and can pump 65m3 per hour in gravity.

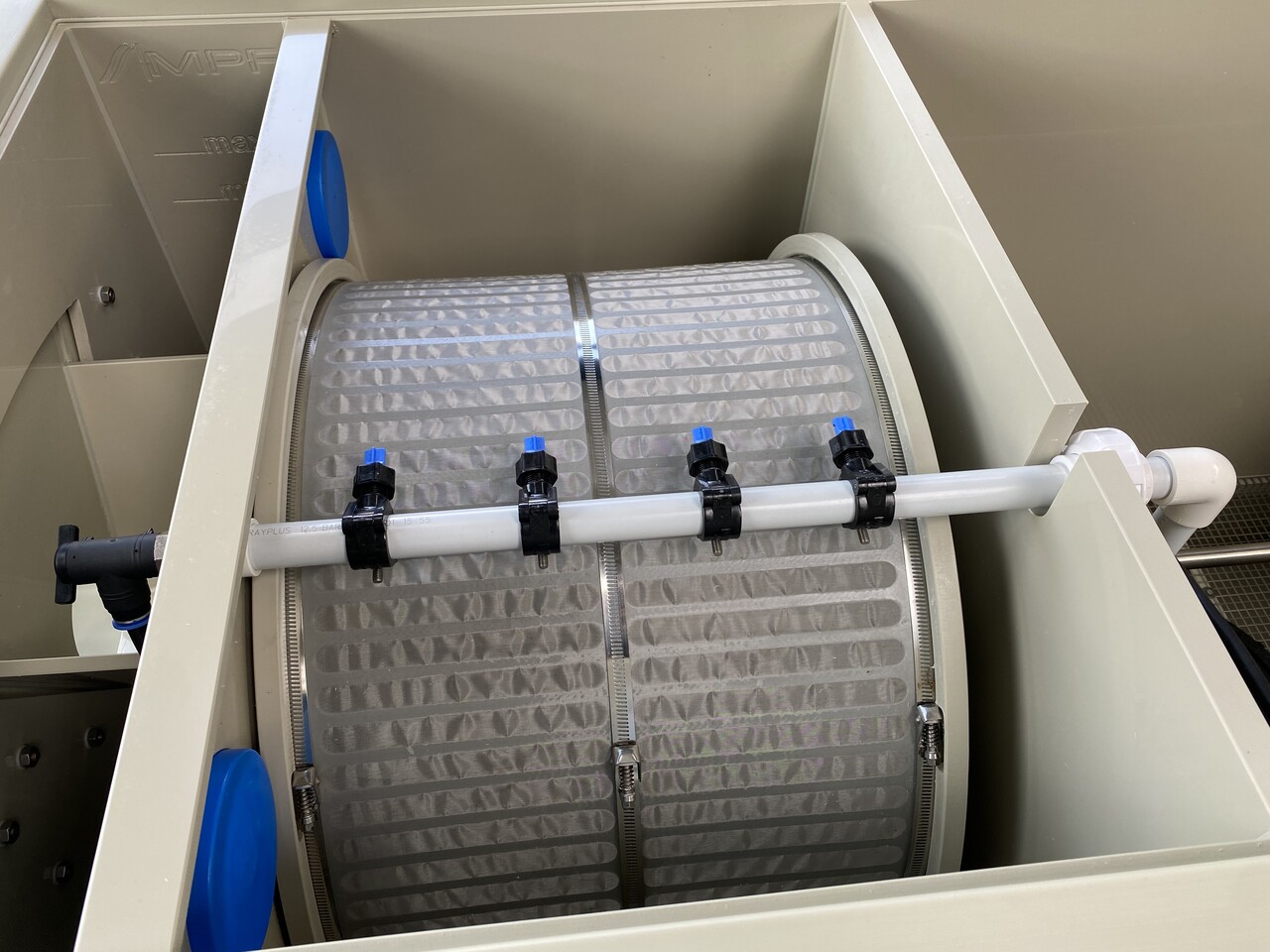

    The Sieve is a 120micron screen that has an extremely high water contact surface of over 80%!

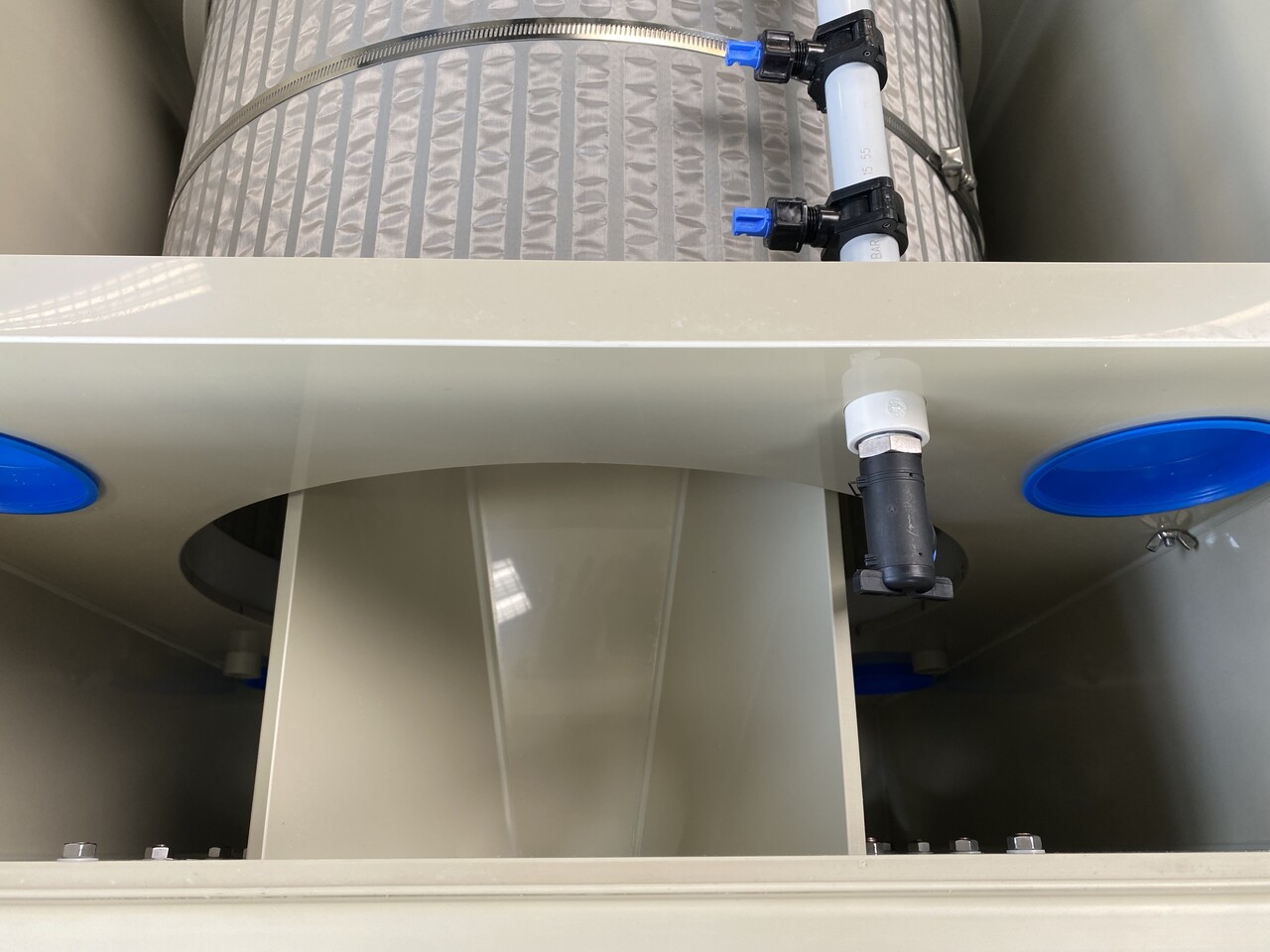

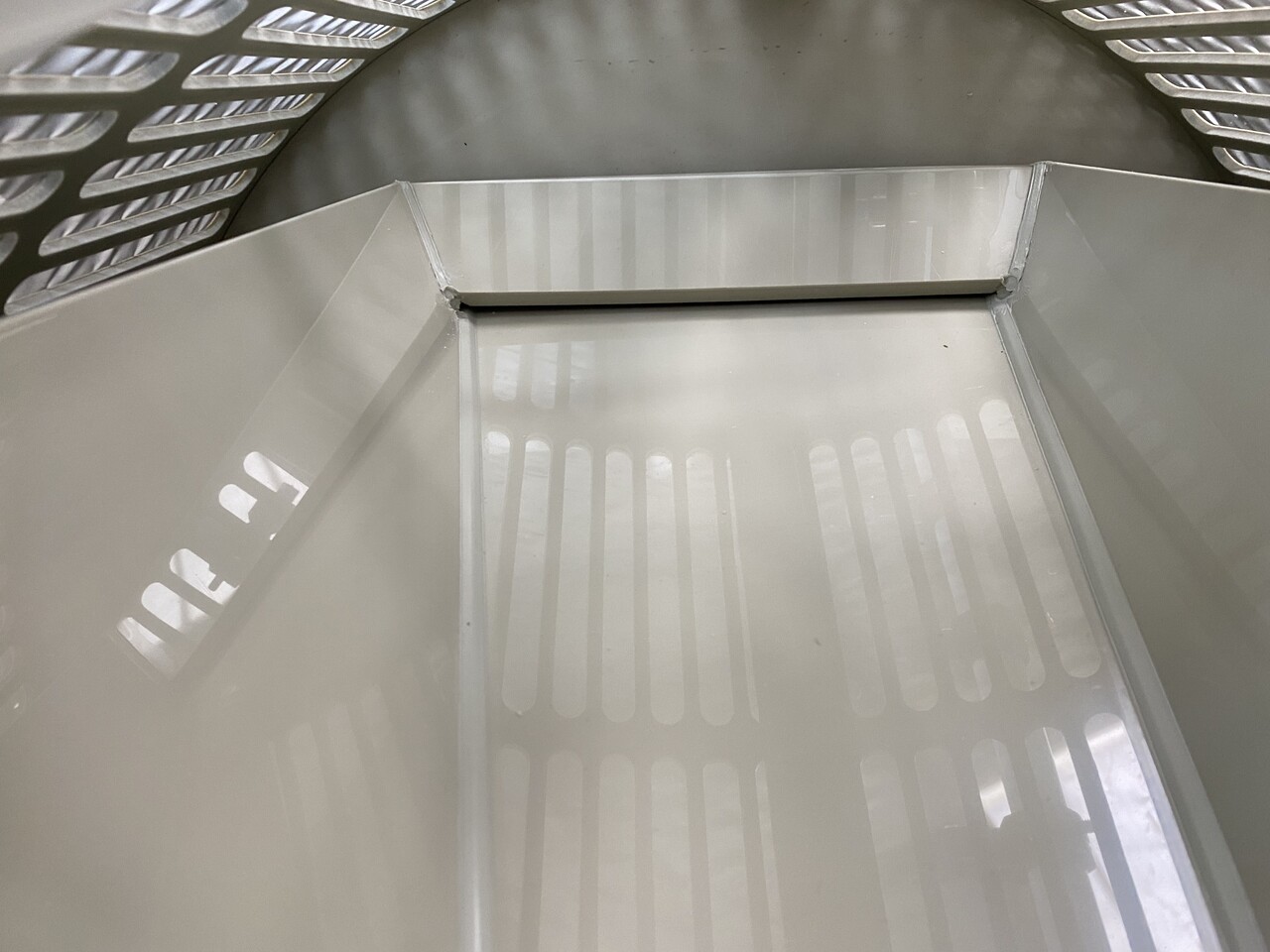

    The waste chute consists of a wide sloping chute with a 110mm connection.

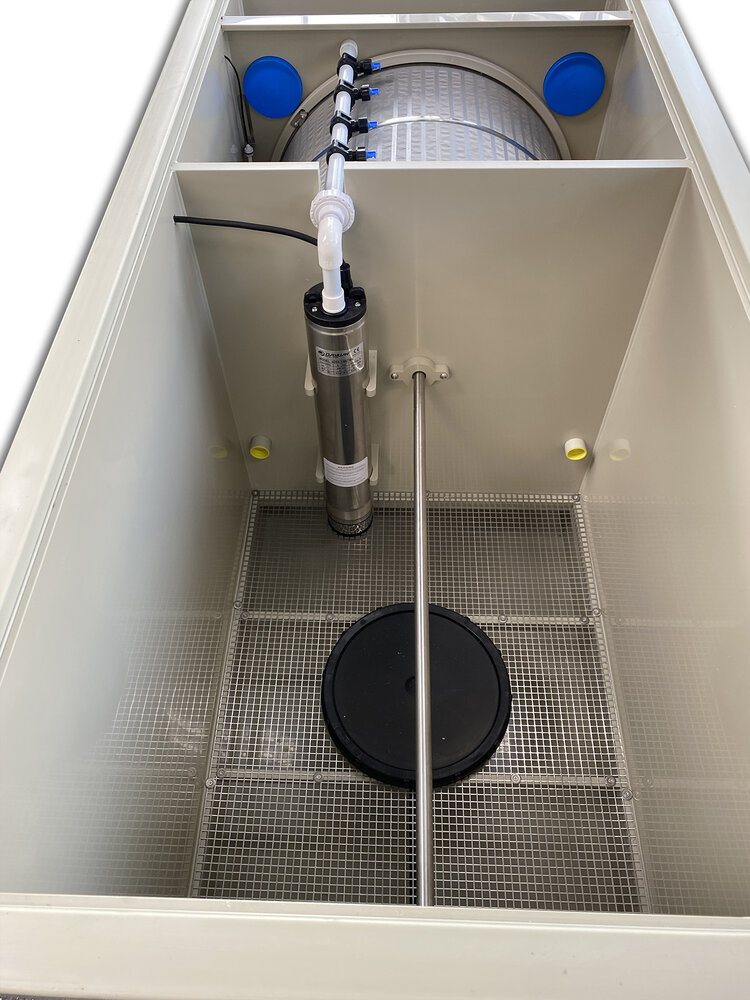

    The internal stainless steel high-pressure pump to rinse the filter screen is a 5 bar high-pressure pump.
    The Bio Chamber has a capacity of 410 liters for the moving bed material.

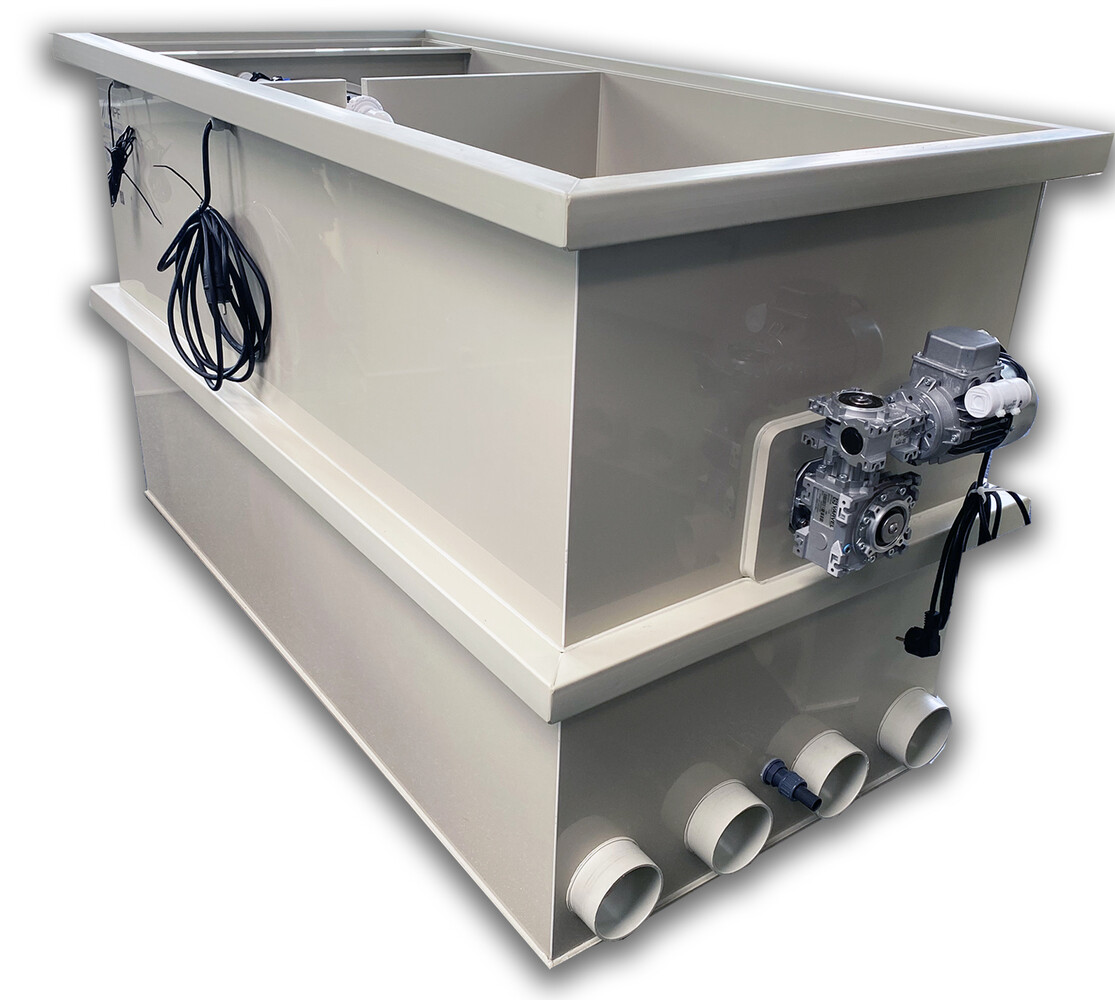

    An industrial motor was chosen to move the drum around. Very reliable and extremely strong, up to 210Nm!!
    Filter is supplied with a lid as standard.



    Specifications:

    Import and export can be discussed at an additional cost. Larger sizes are also possible and we can easily deliver custom work. Make an appointment with your dealer to discuss your wishes and ideas.

    Drum dimensions: diameter 650mm, length is 400mm.
    Maximum flow: 65m3 per hour with maximum water level in gravity setup.

    INCL. Wide Waset Chute
    INCL. MPF CONTROLLER with dry-running protection
    Incl. Air DISK
    Incl. Bypass for emergencies.

    The filter comes standard with a 2-year warranty (excl. filter screen)

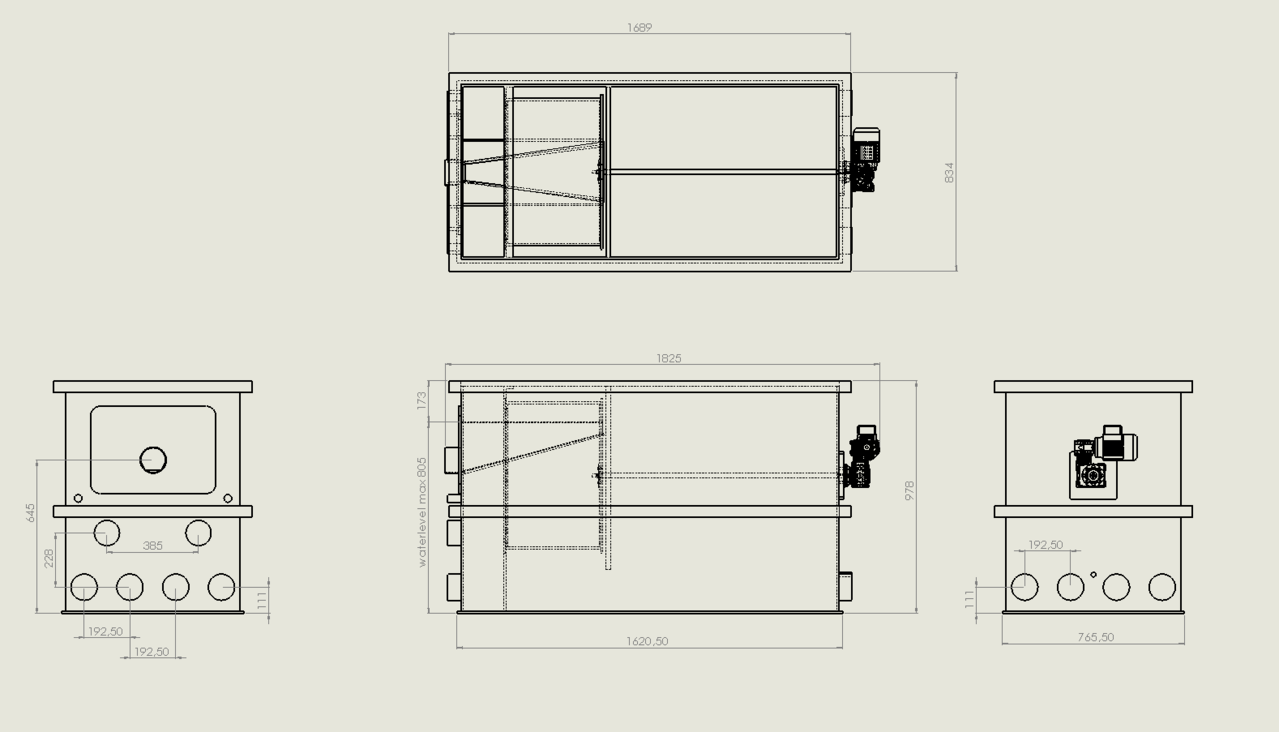

    Download drawing

    Product specifications

    SKU
    B100P
    MAX. FLOW M3/HOUR
    65
    INLET (MM)
    6x 110mm
    OUTLET (MM)
    4x110mm
