MPF BIODRUM GRAVITY TRICKLE 30
BIODRUM GRAVITY TRICKLE
After the development of the Biodrum Rotator, MPF has again developed a unique and innovative design for the pond market. The Biodrum Gravity Trickle!

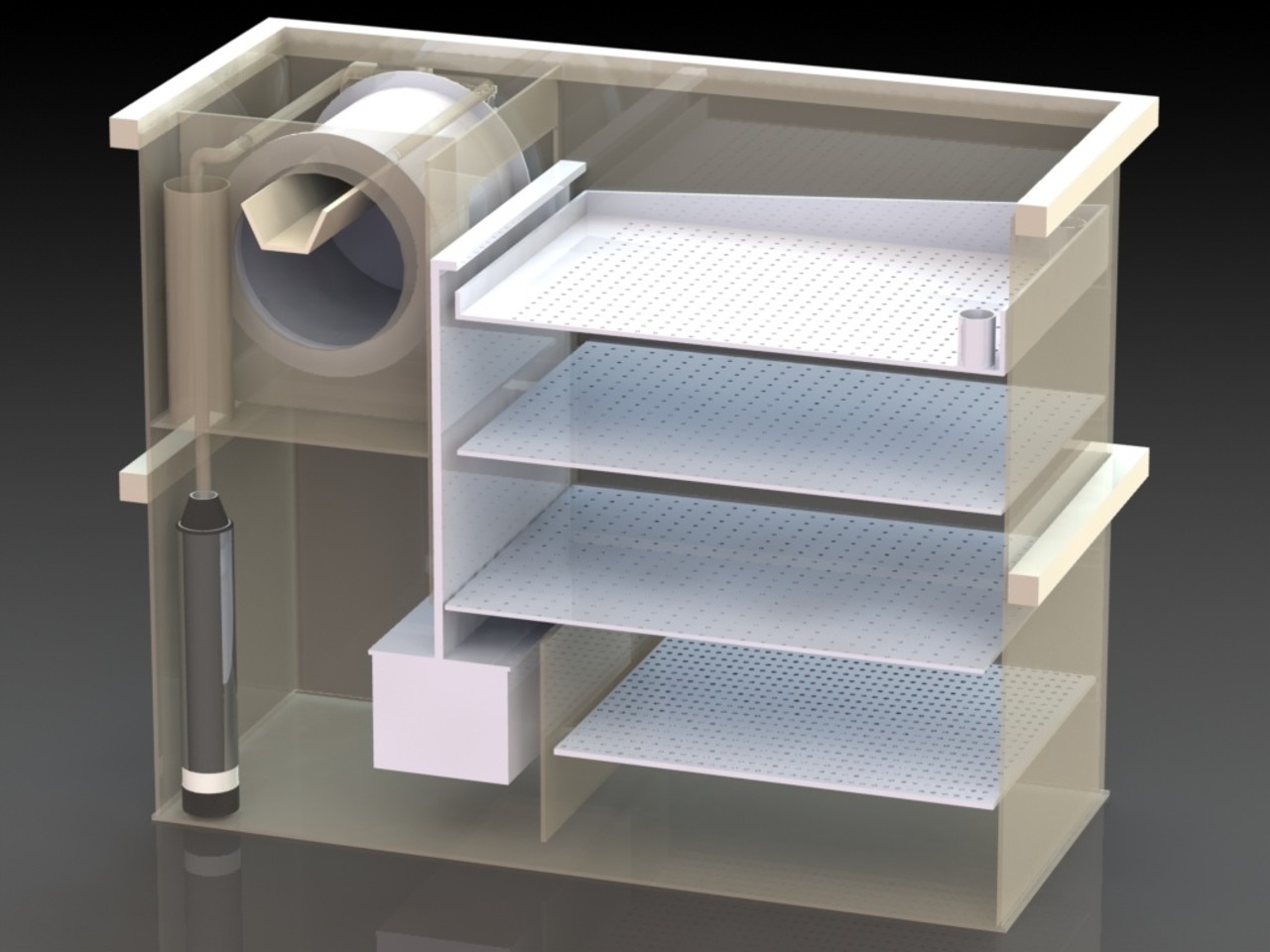

A combination of a drum filter as a pre-filter with a trickle/trickle filter behind it that can be set up in gravity.

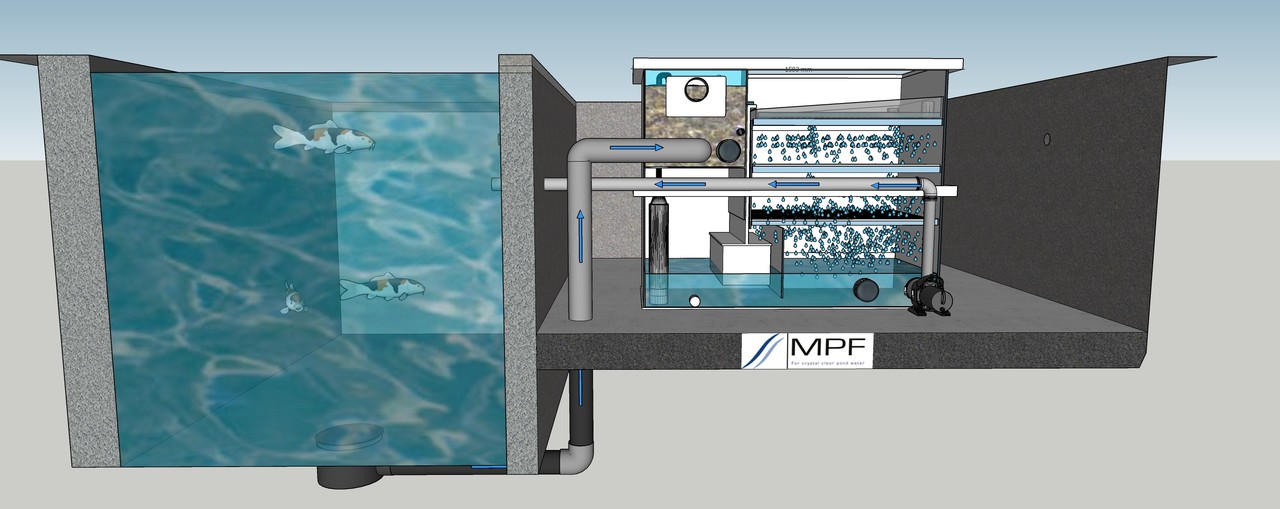

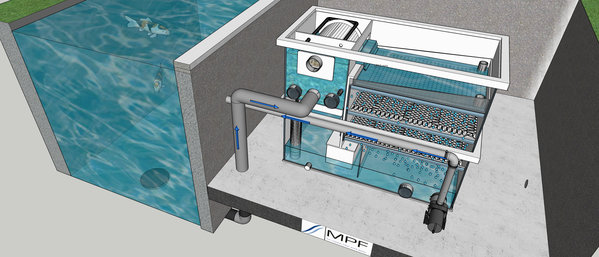

The unique concept of the Biodrum Gravity Trickle is the gravity setup. All trickle filters must be installed above water level, which is often an aesthetic problem.

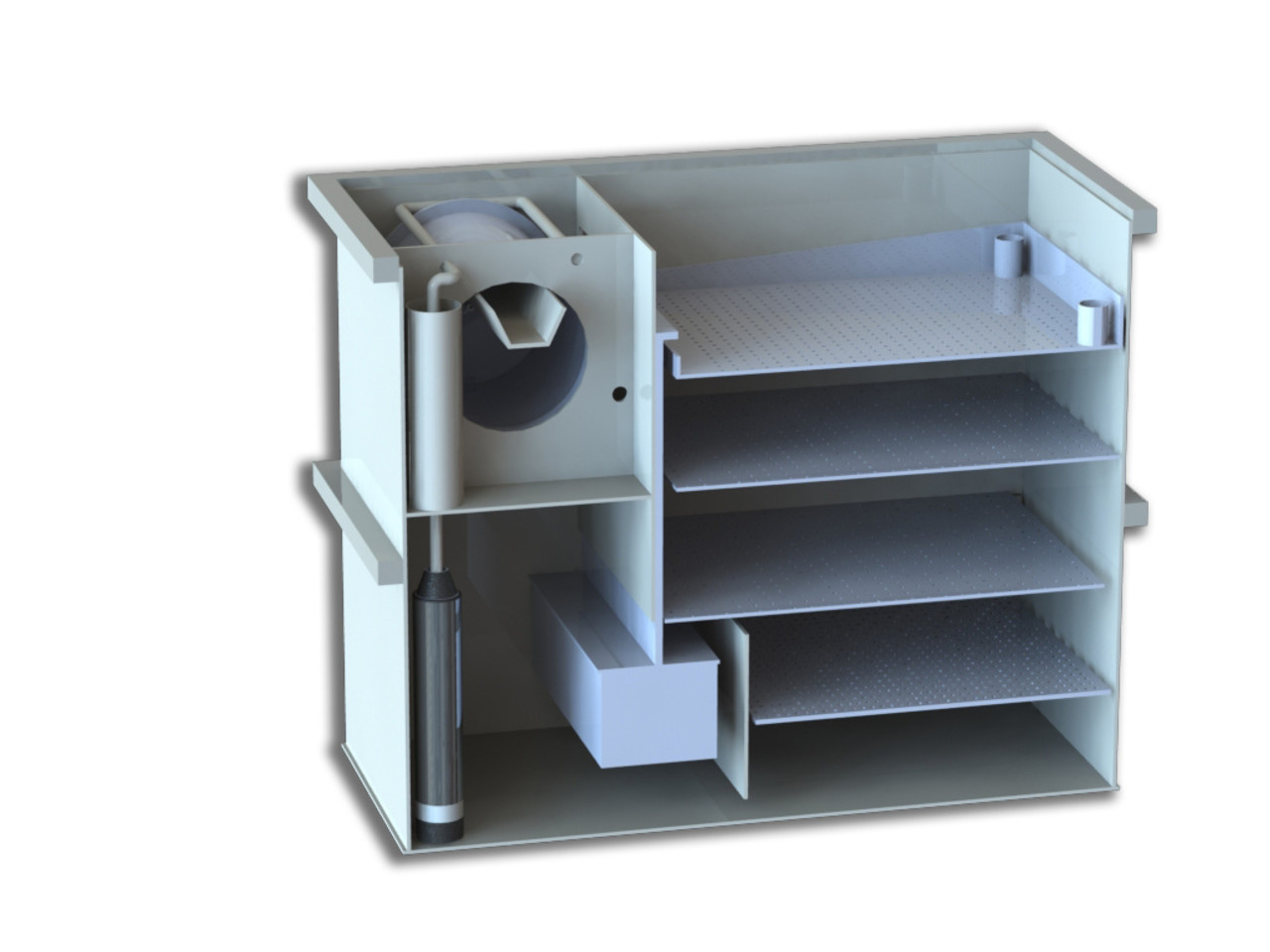

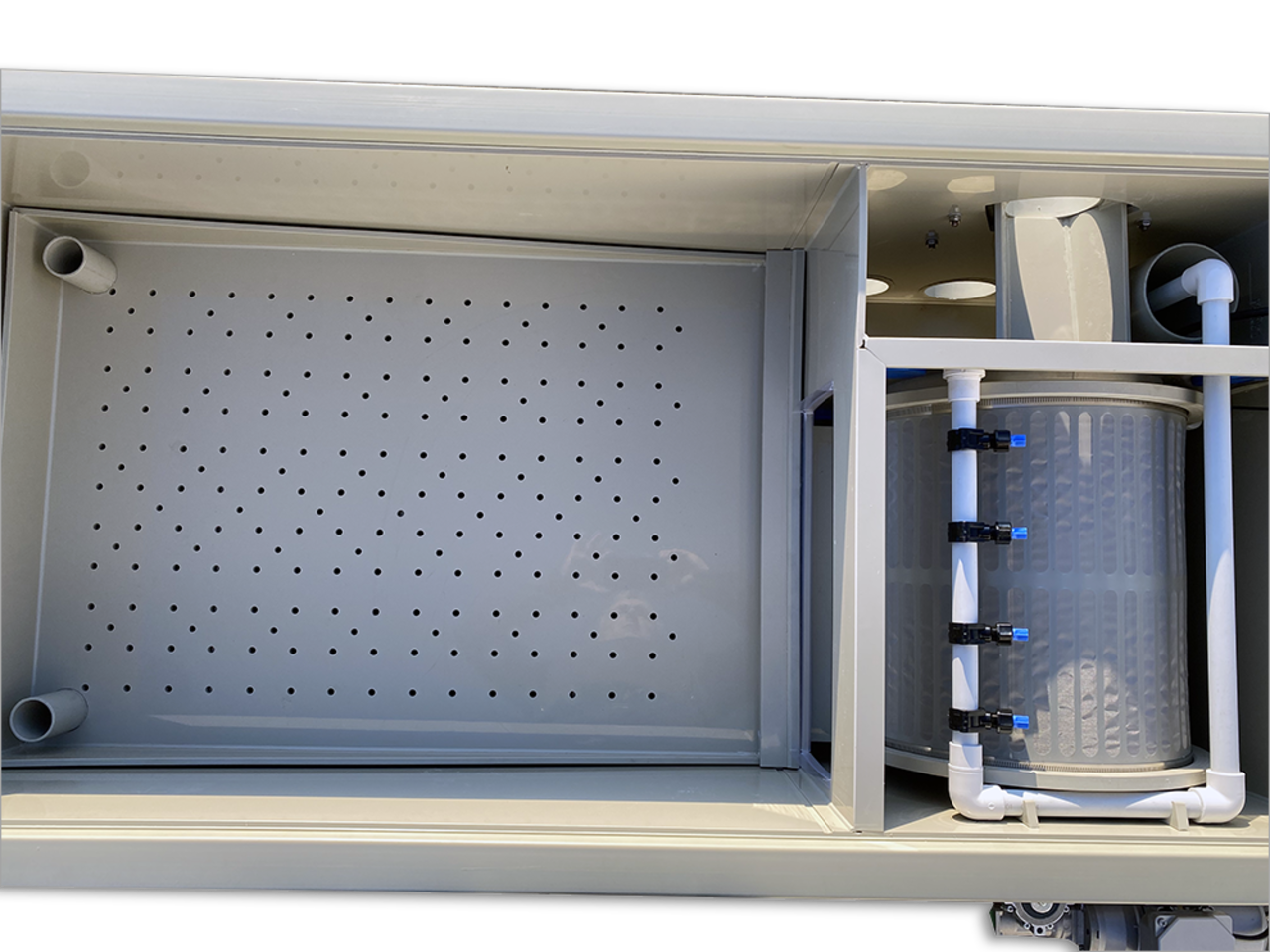

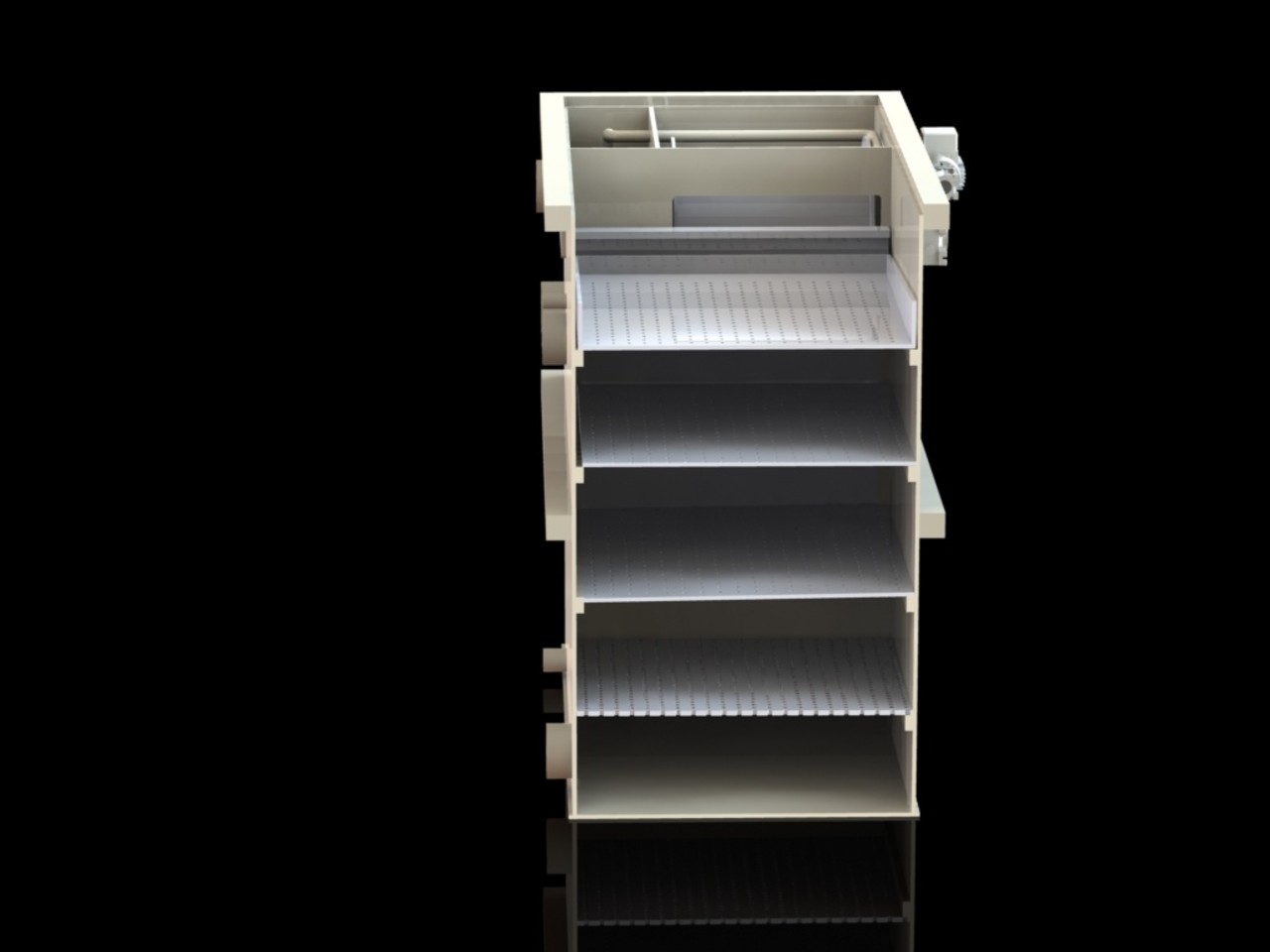

By means of a water level regulator, the water flows on the upper drip plate. As a result, the water is optimally distributed over the underlying material. This water level controller ensures that the water level remains regardless of the capacity of the pond pump.
This design creates the best pre-filtration through the drum screen and the best biological cleaning through the trickle section. The water breaks continuously and at a high rate, which means that the oxygen uptake in the water is enormous. As a result, there is continuous outgassing of ammonium and Co2. And so the Biodrum Gravity Trickle produces better water quality and healthy koi.
You can determine the biological media in the trickle section yourself. Our preference is for Sera siporax protect
‘A BIODRUM GRAVITY TRICKLE CAN
PROCESS 2.5X AS MUCH FEED
THAN A MOVING BED WITH THE SAME AMOUNT OF BIOMEDIUM!'
- Better biological effect
- Can be placed underwater level
- Rapid startup of biologyclear water
- Stable bacterial culture
- No more air pump needed
- Very oxygen-rich way of filtering
- Outgassing of ammonia by large amounts of oxygen and splashing water
- Little to no maintenance
- Can process 2.5x as much feed as a moving bed

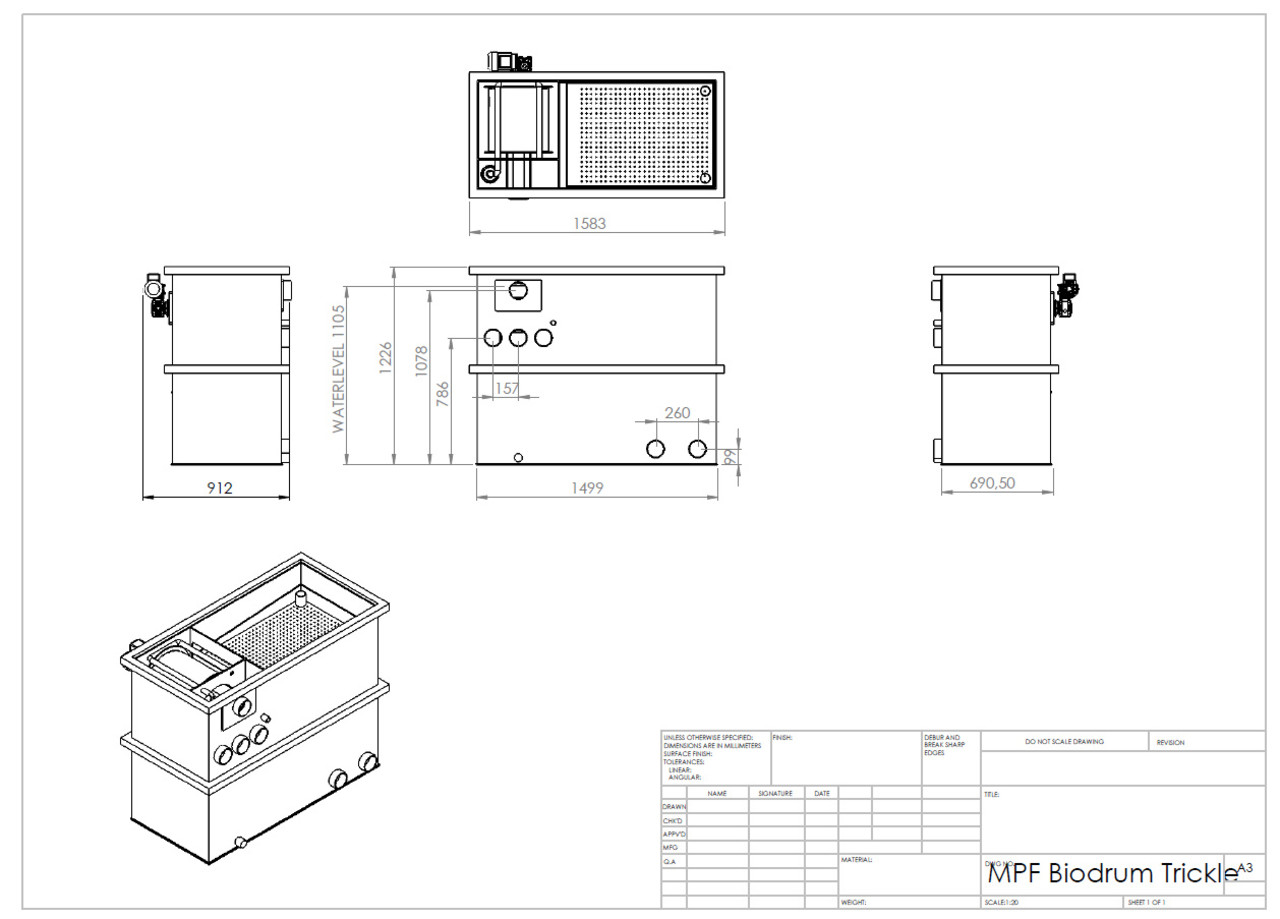

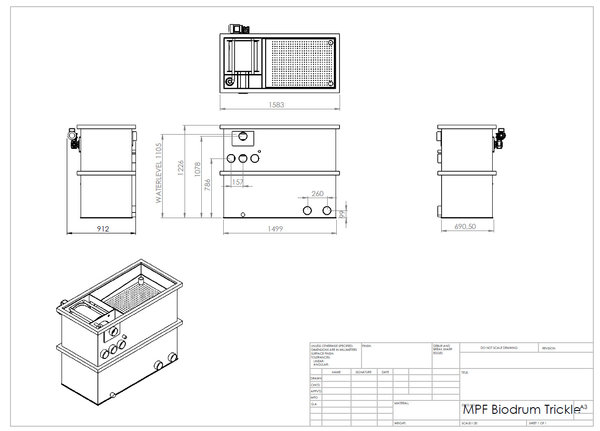

Dimensions L x W x H 1583 x 912 x 1226 mm
Panel size L x Ø 400 x 430 mm
max. Flow 25 m3/hour

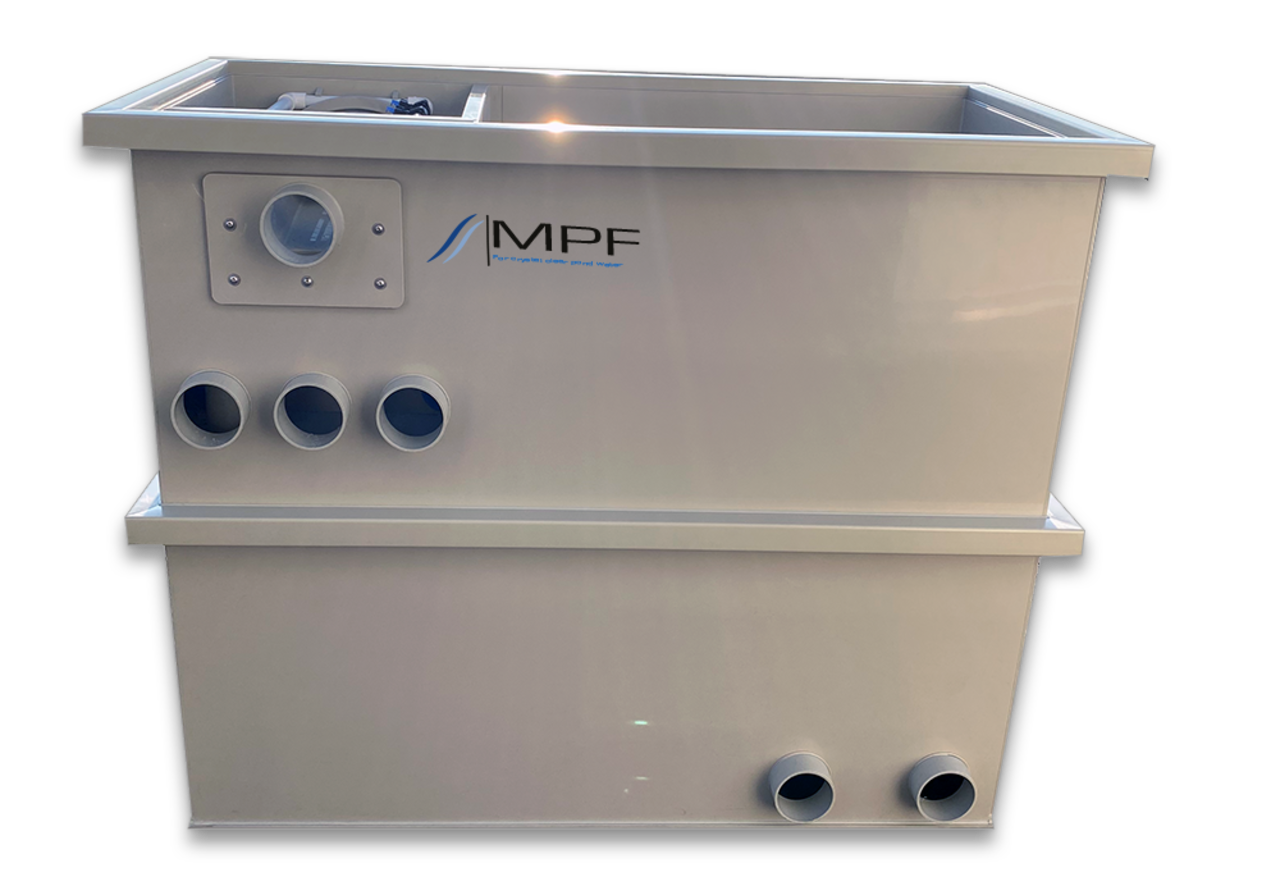

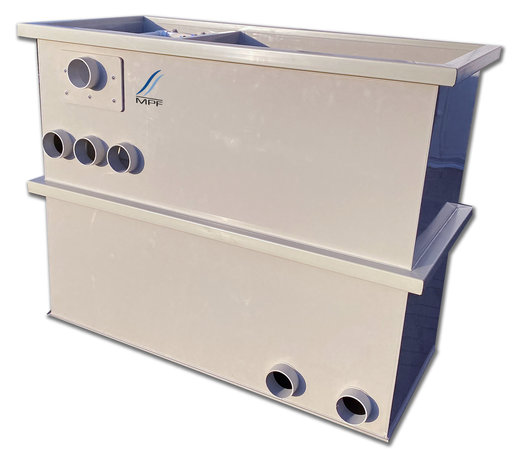

Inlet (mm) 3 x 110mm
Outlet (mm) 2 x 110mm
Content trickle 300 liters*
Engine Industrial 210Nm
Rinse pump: Internal
With 300 liters of Crystal Bio as a filling, approximately 1600 grams/day can be fed.
