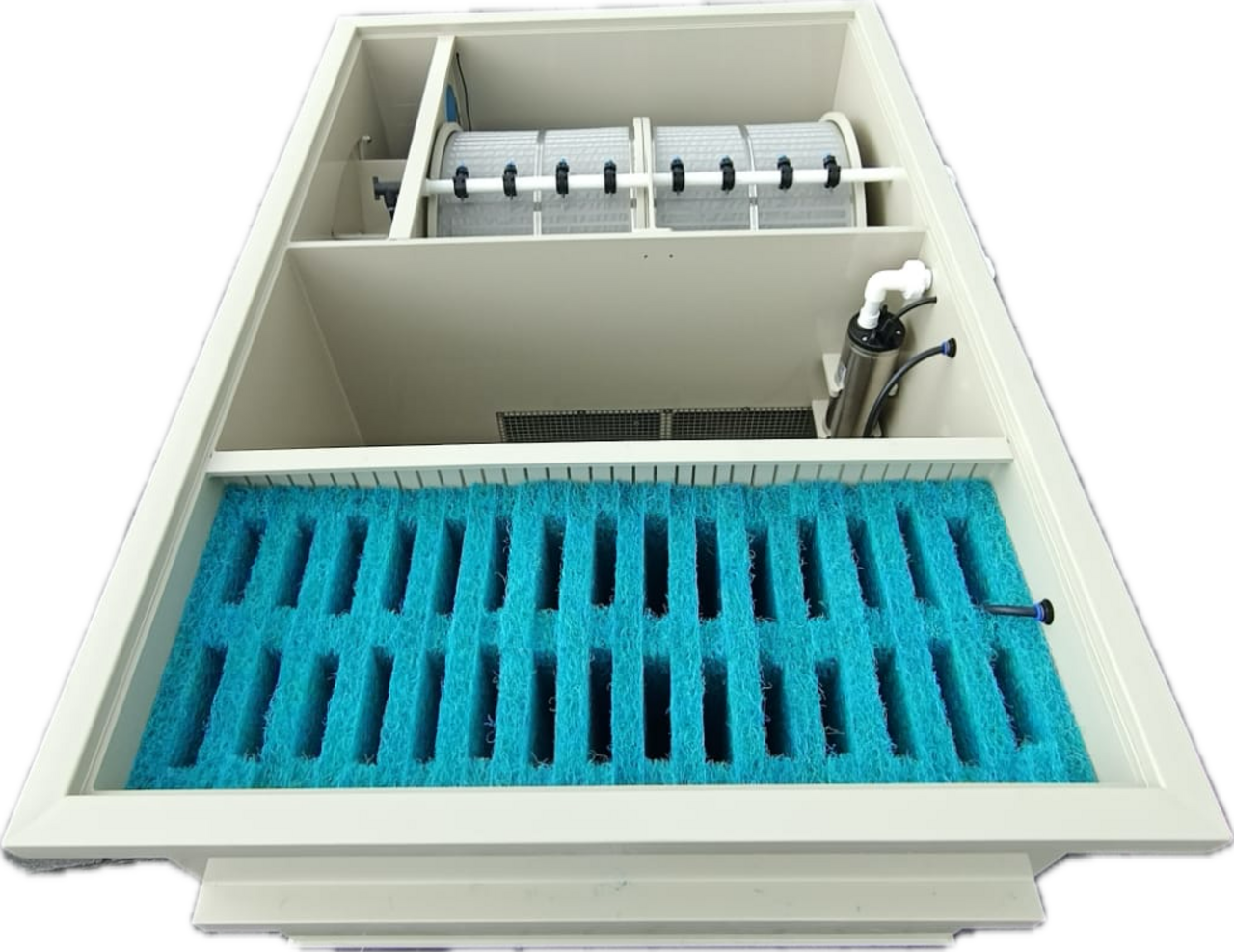

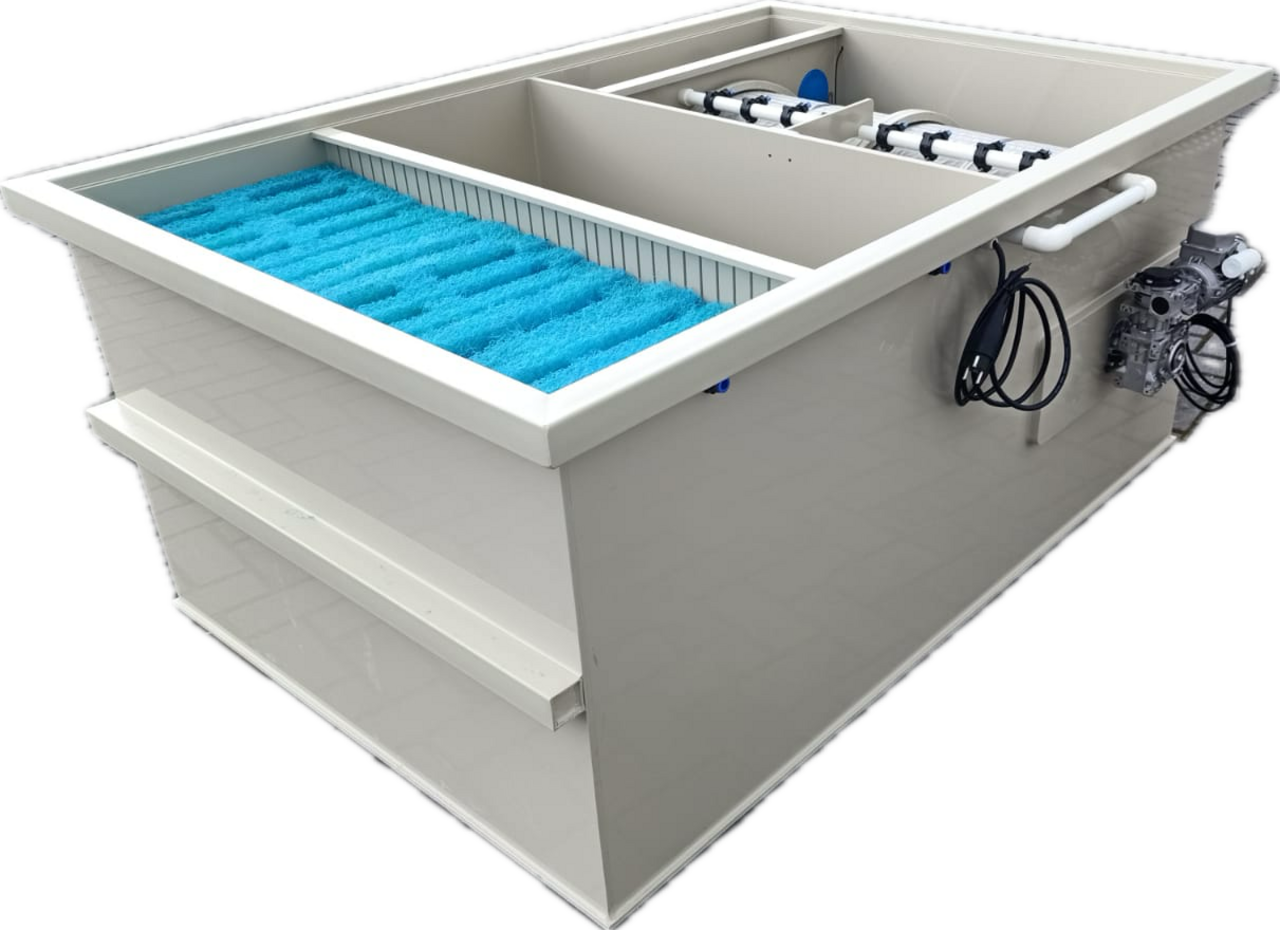

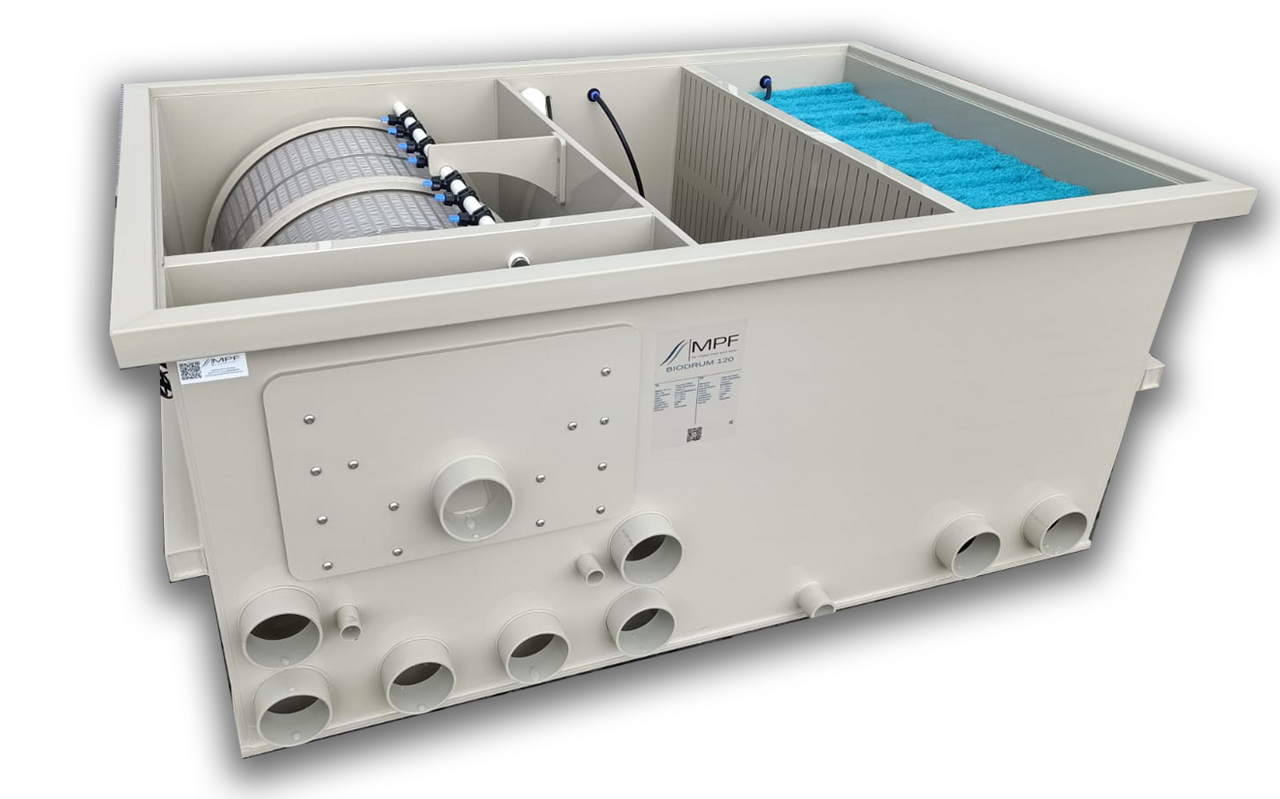

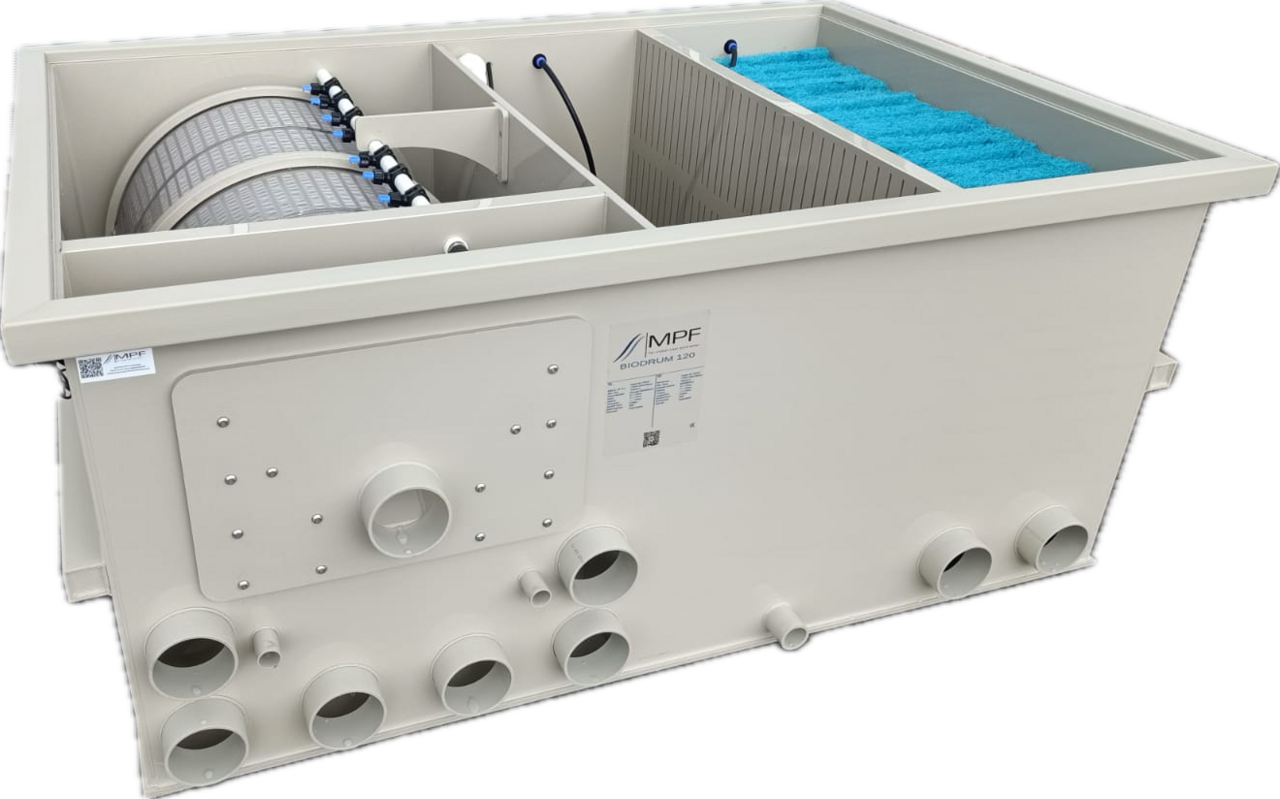

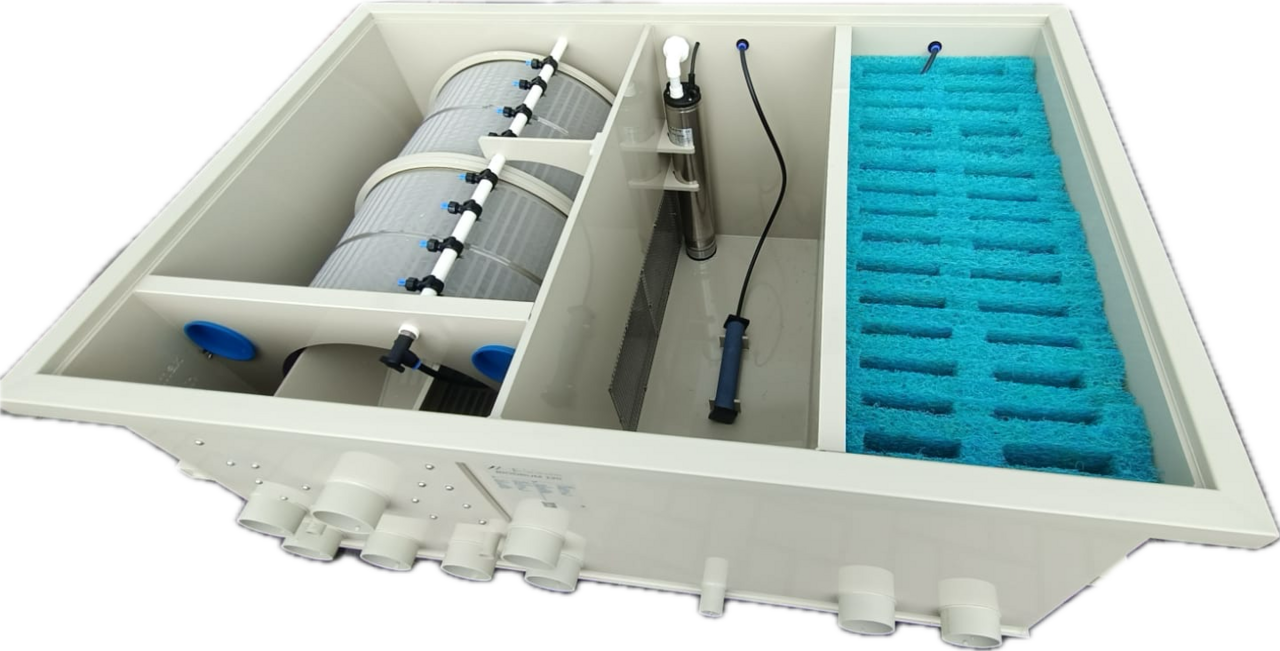

The MPF Biodrum 120 filter: 120m³ of filtering in a single module!

The screen is a 70-micron screen cloth with an exceptionally high water contact surface of over 80%!
The outlet consists of a sloping gutter with a 110mm connection. A flushing system is also integrated to flush the waste gutter if necessary.

The first Biodrum has a capacity of 260 liters.

The second chamber houses 4m² of Japanese mats.
An industrial motor was chosen to rotate the drum. Very reliable and extremely strong, with a capacity of 210Nm!
The filter comes standard with a lid.
The internal stainless steel high-pressure pump for flushing the filter cloth is an Oase 4-bar, 4.5m³ per hour high-pressure pump.
Specifications

Specifications for the inlets and outlets are negotiable for an additional charge. Larger sizes are also possible, and we can easily provide custom solutions. Schedule an appointment with your dealer to discuss your needs and ideas.

Maximum flow: 100m³ per hour with maximum water level in gravity setup.

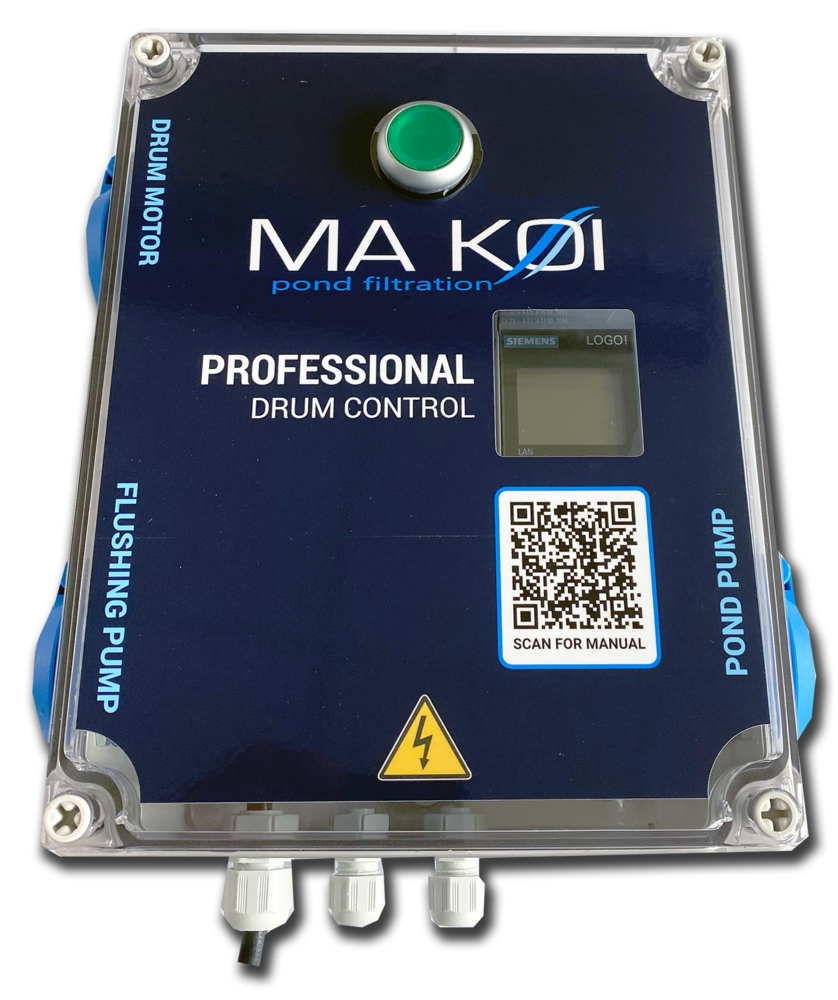

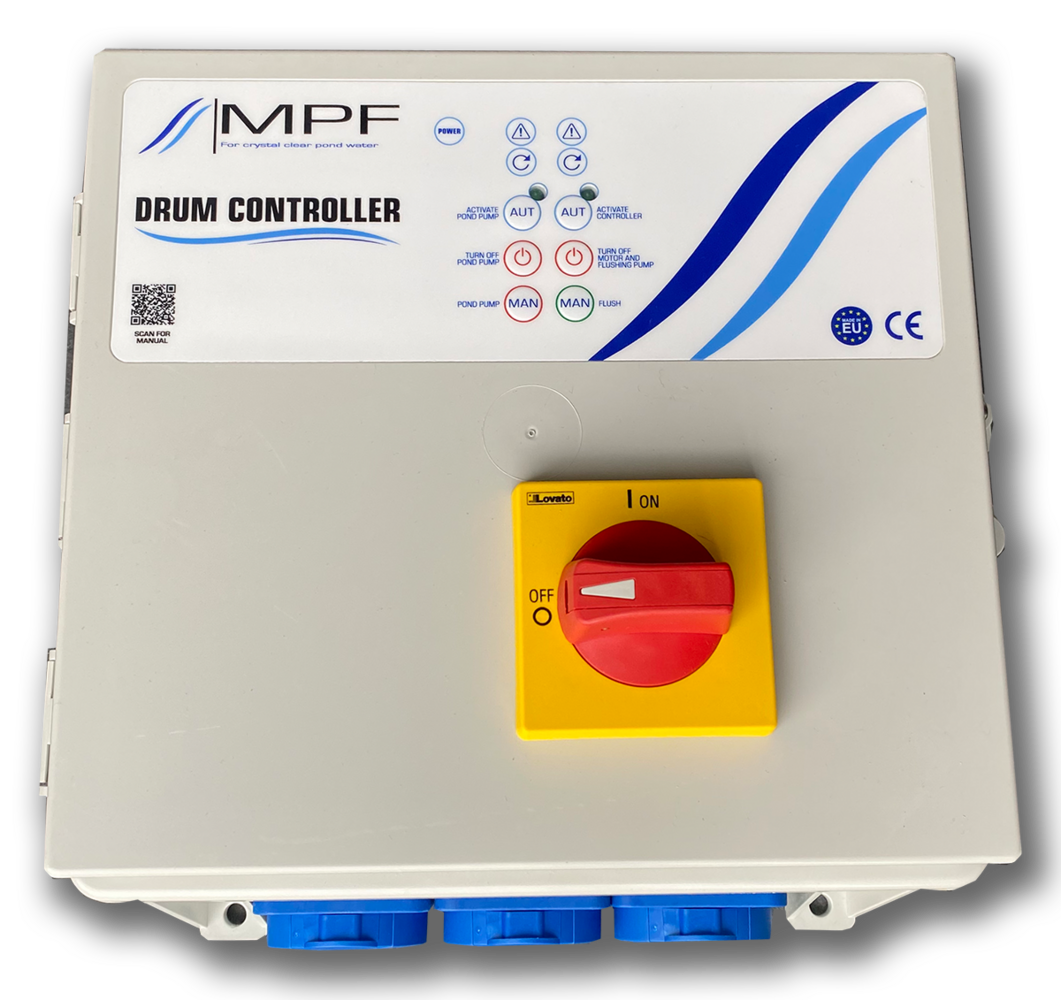

Control: Includes dry-run protection, SMS output module, and digital PLC control!
Includes air dish
Includes emergency bypass.
Includes internal flushing pump
Includes controls
18.5 cm above water level, gravity setup.

The filter comes standard with a 2-year warranty (excluding filter cloth).

Download drawing
