Ilex Filtration Ilex Biodrum 20 Drum filter with Bio-media
The Ilex Biodrum 20 is a low-maintenance filter system that ensures healthy and clear pond water!

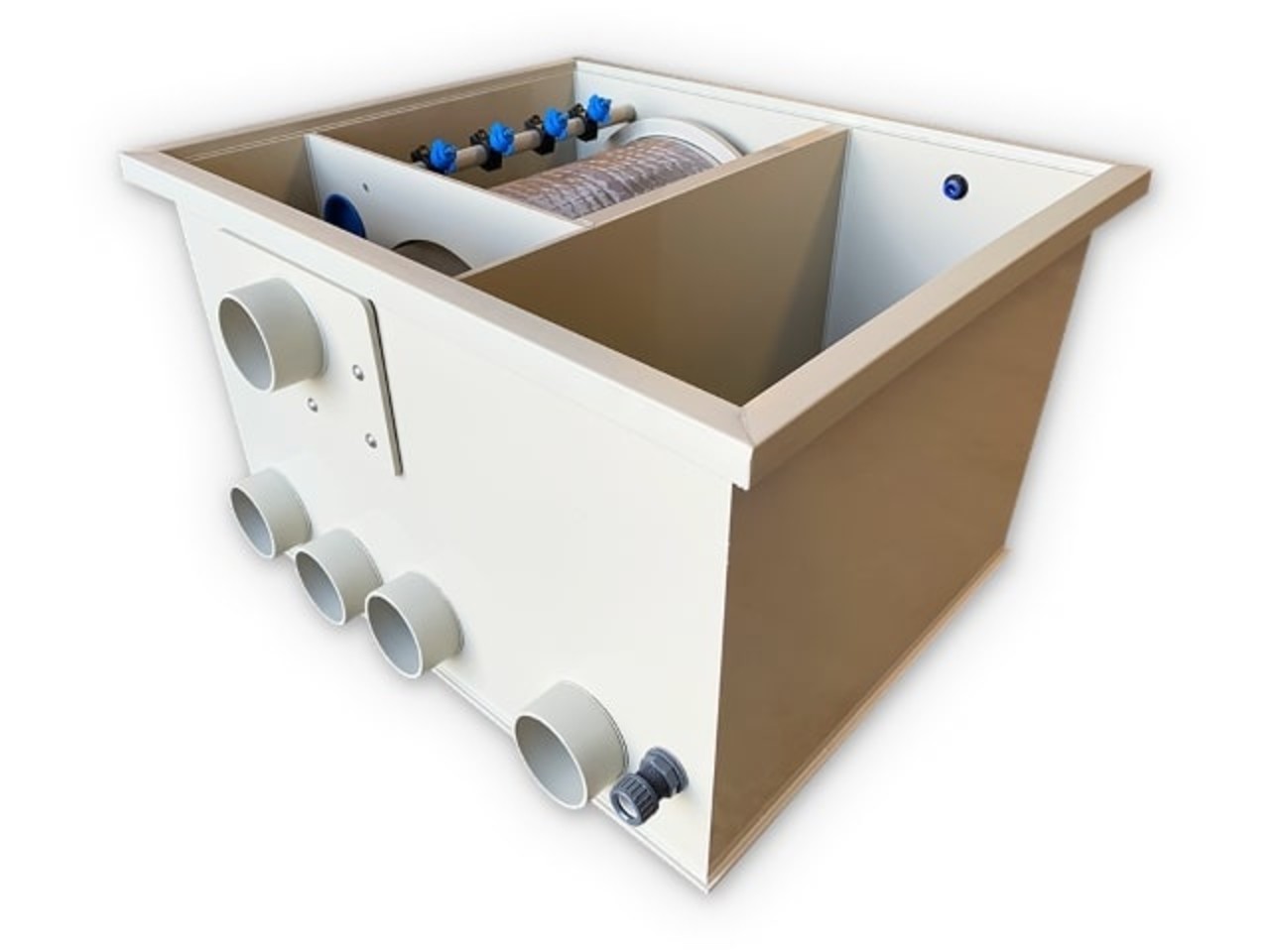

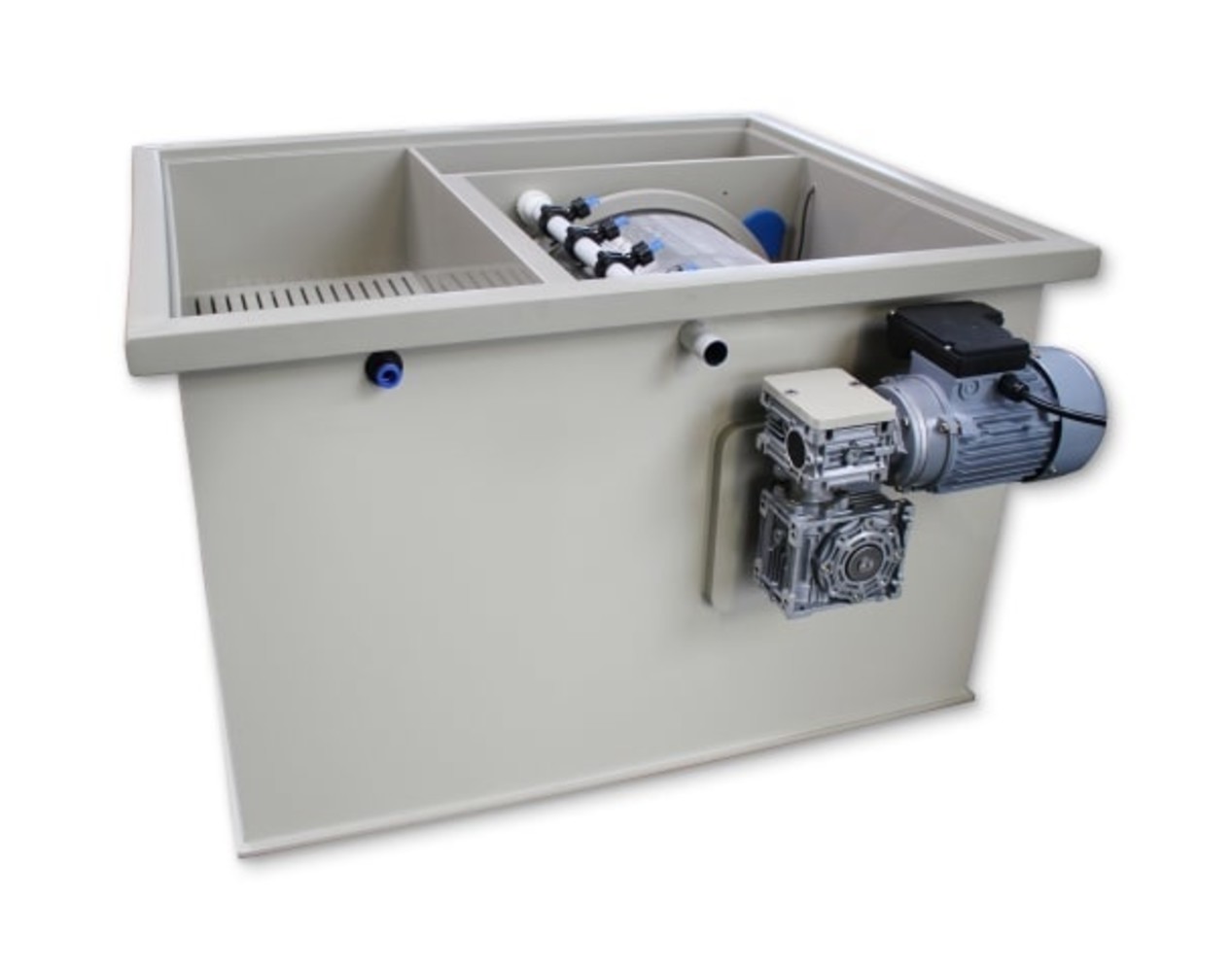

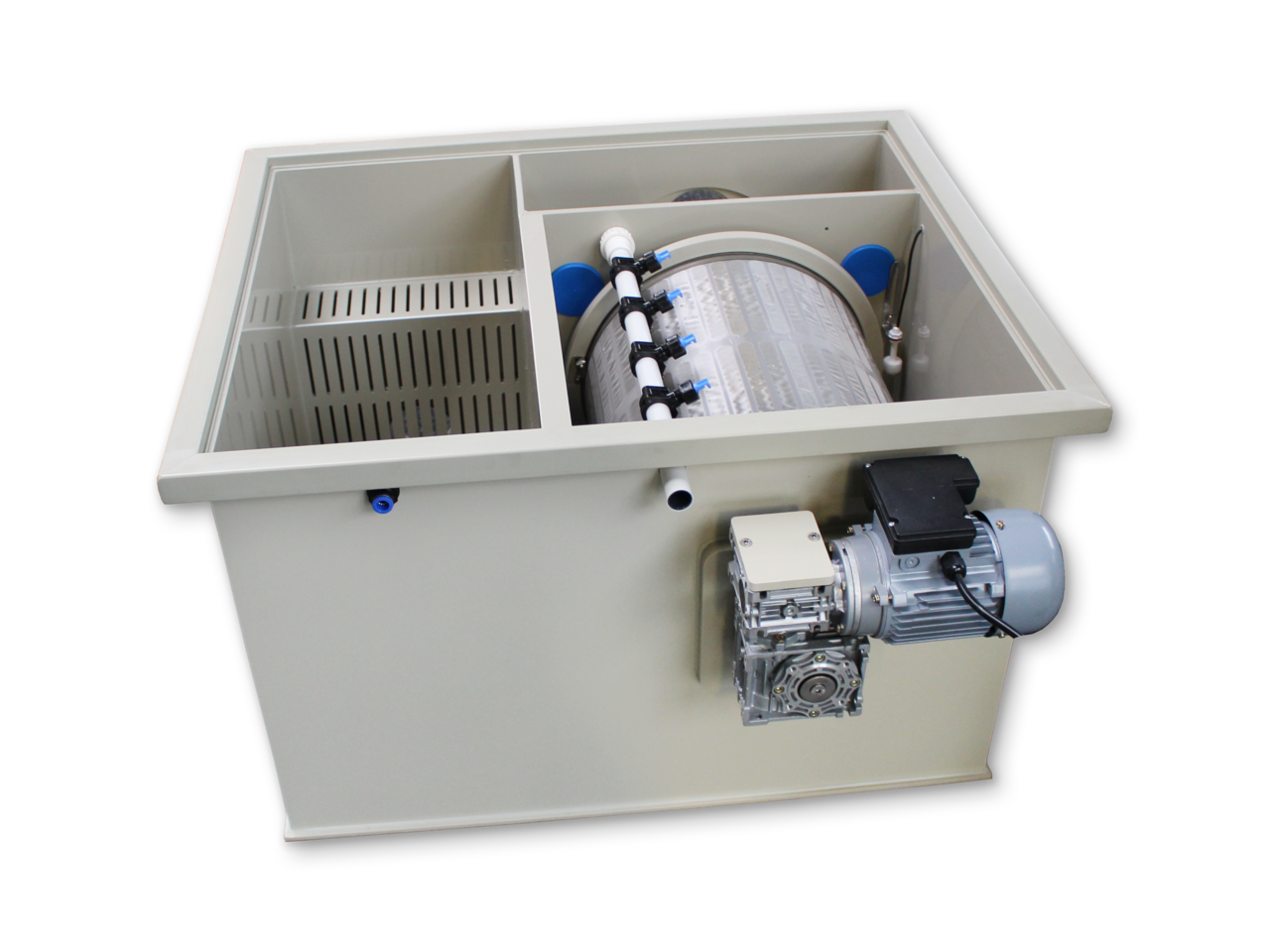

This combi drum filter is equipped with an ingenious drum filter technology and a 60 liter Biologist for optimal water movement and filtration. These filters combine a Drum and Biological filter in a compact housing.

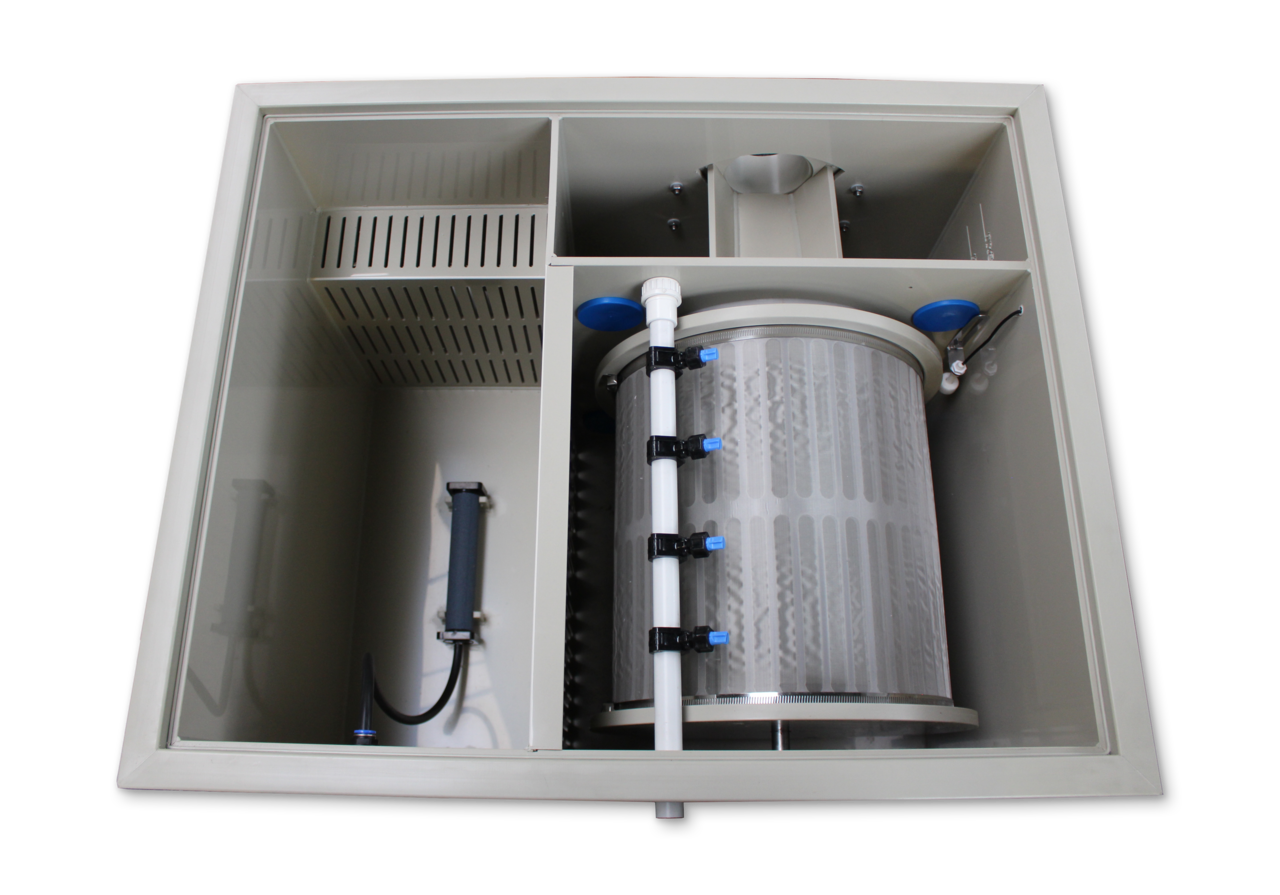

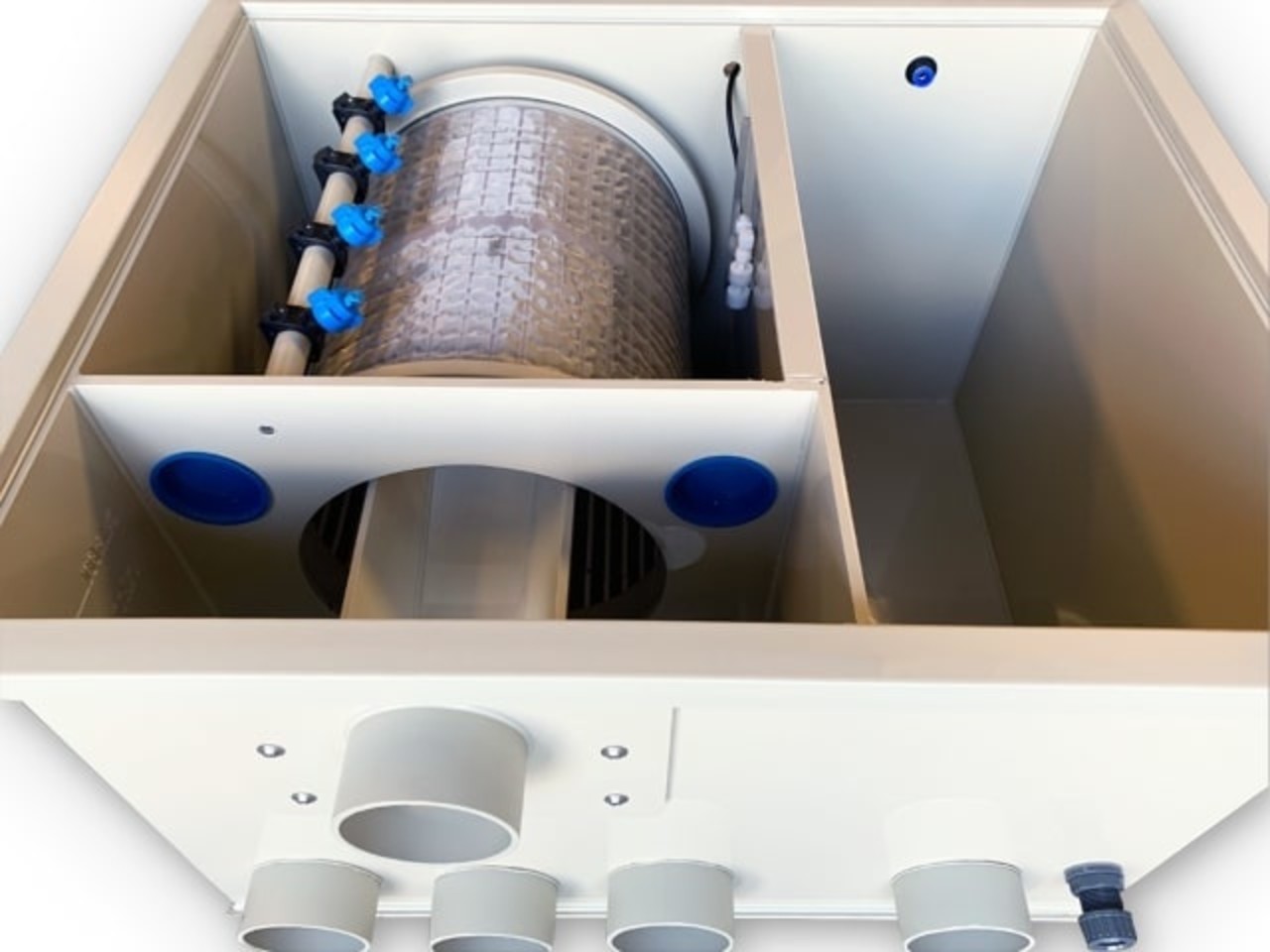

The Drum filter is a mechanical pre-filter that removes very fine contamination (up to 70 microns) from a water flow in a simple way. Then the second chamber provides powerful biological filtration. This chamber is standard equipped with 30 liters of Helix, but can also be equipped with, for example, K1 micro for even better biological filtration.
The filter consists of high-quality materials such as stainless steel and polypropylene (PP) and aims to guarantee perfect water quality in a simple and reliable way.
This Combi drum filter comes complete with Bio-carrier, lid, electronics with dry-running protection and an Oase flushing pump.
- Drum dimensions: diameter 420mm, length is 400mm.
- Maximum flow: 20m3 per hour with maximum water level in gravity setup.
- Motor: 27Nm

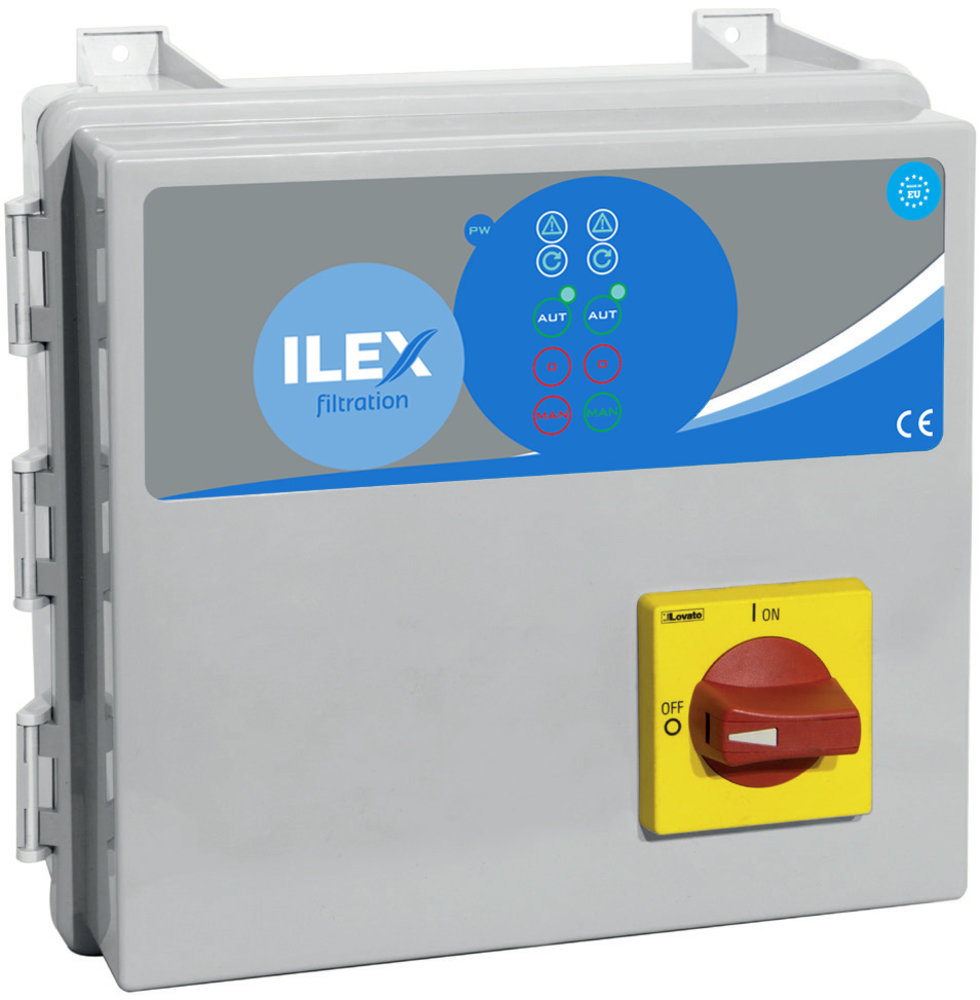

- Incl. Control with dry running protection
- Incl. Bypass for emergencies.

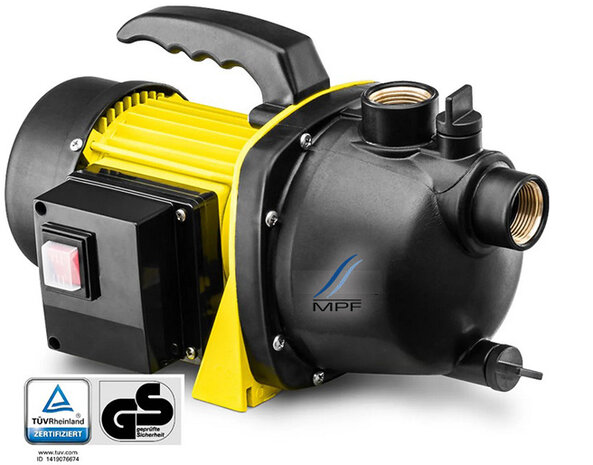

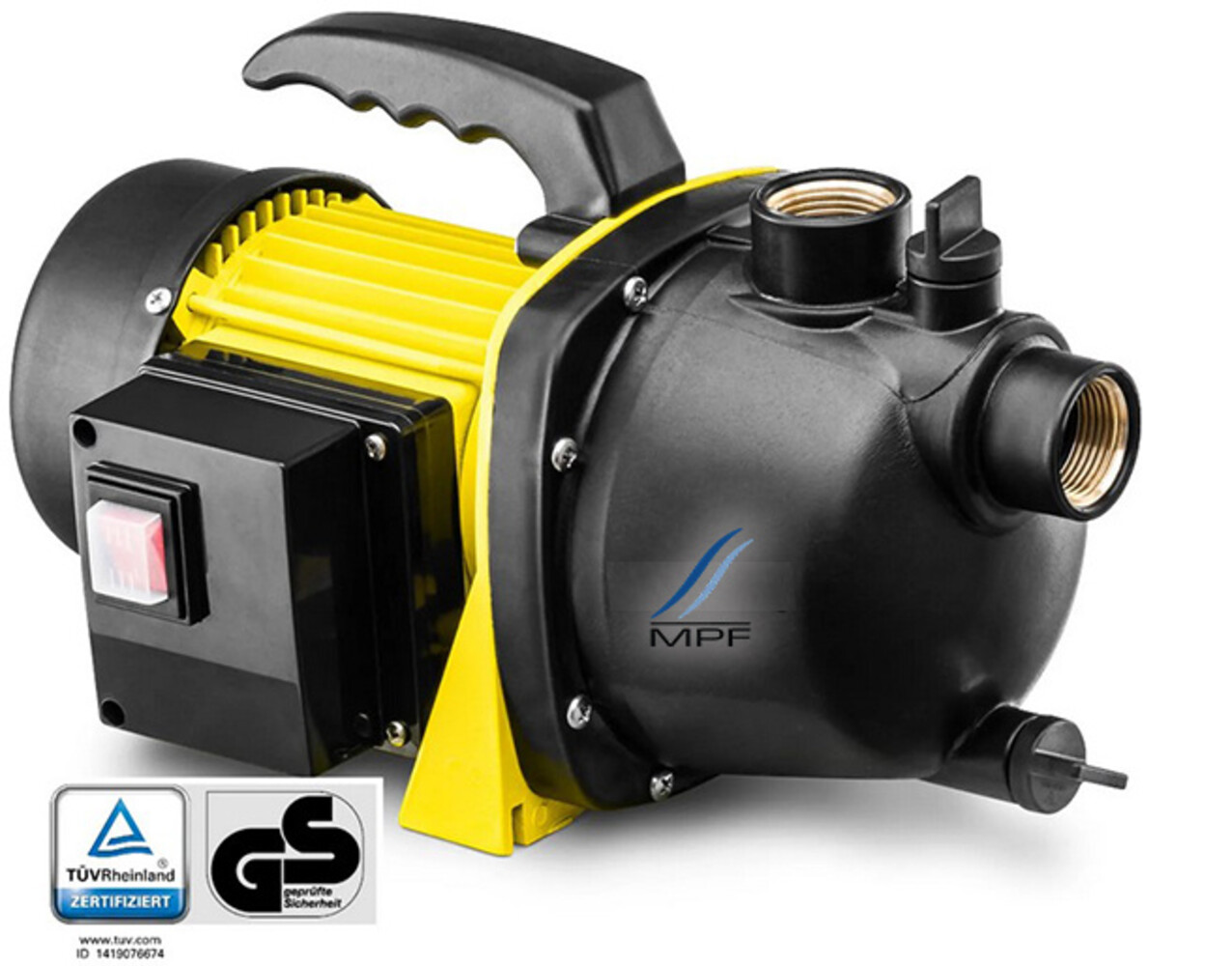

- Incl. Oase Flushing pump (3 year warranty)
- Incl. 30 liters of helix
- Incl. Air stone 200mm
Can be set up for both pump-fed and gravity
Height above water level 11.5 cm
The filter comes standard with a 2-year warranty (excluding filter cloth)
- MAX. FLOW M3/HOUR
- INLET (MM)
- OUTLET (MM)
- Advice max. Volume koi pond (m3)
- Advice max. Volume swimmingpond/pool (m3)
